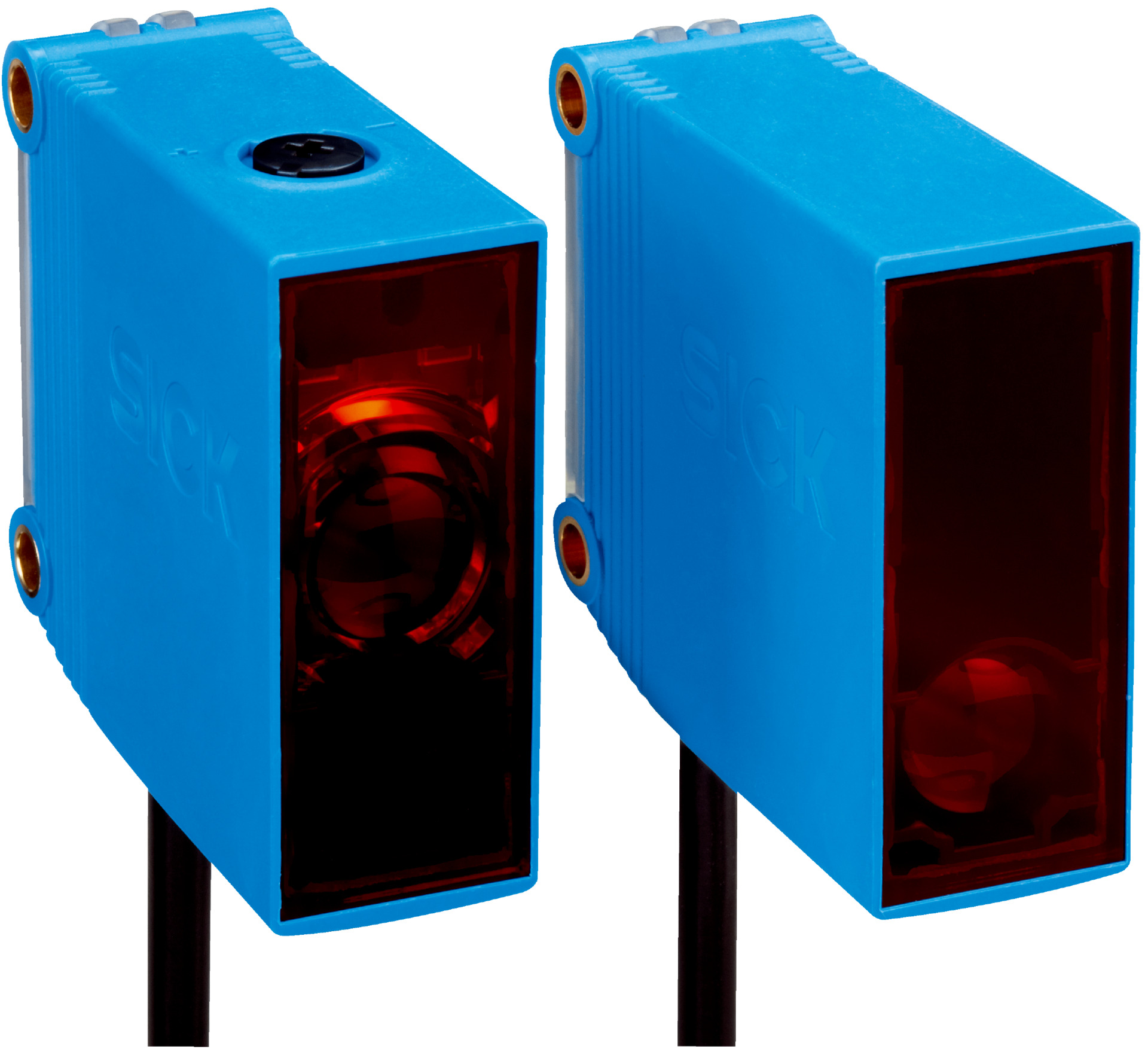

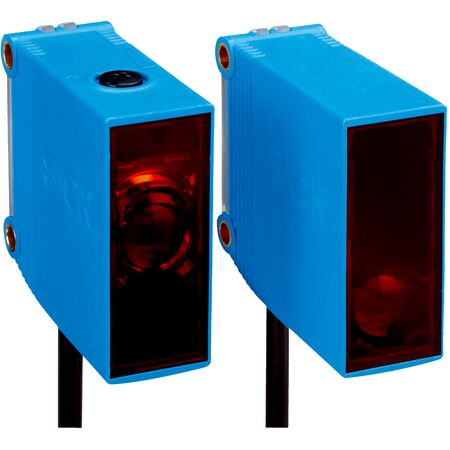

Through-Beam Photoelectric Sensor GSE10-R3812 | 35m Sensing Range | IP67 Rated | by SICK

BRAND: SICK
SKU: 1065912
$662.10 List price: $832.30
+ −
30 Days Return Delivery Options
The GSE10-R3812 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 35 meters with a visible red light source. Built for reliable object detection and safety monitoring, it features a robust IP67-rated housing and a fast response time of ≤ 10 ms, making it ideal for manufacturing processes and material handling systems.
Technical Specifications
  • Functional principle: Through-beam photoelectric sensor
  • Sensing range max.: 0 m to 40 m, typical 0 m to 35 m
  • Light source: PinPoint LED, wavelength 625 nm
  • Light spot size at 15 m: Ø 180 mm
  • Supply voltage: 24 V AC/DC to 240 V AC/DC
  • Power consumption sender: ≤ 2 VA, receiver: ≤ 2.5 VA
  • Switching output: Relay, SPDT, electrically isolated
  • Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
  • Response time: ≤ 10 ms, switching frequency: 20 Hz
  • Connection: 5-wire cable, 2 m, PVC insulation
  • Protection class: II, enclosure rating: IP67
  • Housing material: Plastic ABS/PMMA
  • Operating temperature: –30 °C to +60 °C
  • Storage temperature: –40 °C to +70 °C
  • Relay switching cycles min.: 100,000 cycles at 3 A
  • EMC standards: EN 60947-5-2, EN 61000-6-3
  • Safety parameters: MTTFD 448 years, mission time 20 years
  • Dimensions (H x L x W): 50mm x 52mm x 20mm
  • Weight: 0.23 kg
Key Features
  • Through-beam photoelectric sensor with visible red light
  • Sensing range up to 35 meters
  • Rectangular housing design with PinPoint LED light source
  • Potentiometer adjustment with 270° rotation
  • Relay output with SPDT, electrically isolated switching
  • High switching frequency of 20 Hz and fast response time ≤ 10 ms
  • Robust plastic ABS/PMMA housing with IP67 enclosure rating
  • Wide operating temperature range from –30 °C to +60 °C
  • Includes mounting bracket BEF-G10UC01 (2x)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing processes
  • Material handling and packaging systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low power consumption with ≤ 2 VA sender and ≤ 2.5 VA receiver
  • Durable design reduces waste and replacement frequency
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK GSE10-R3812 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
