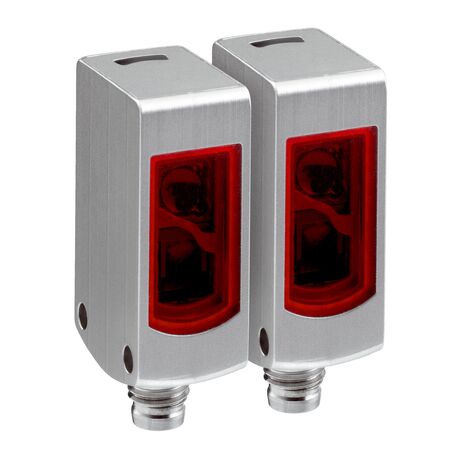

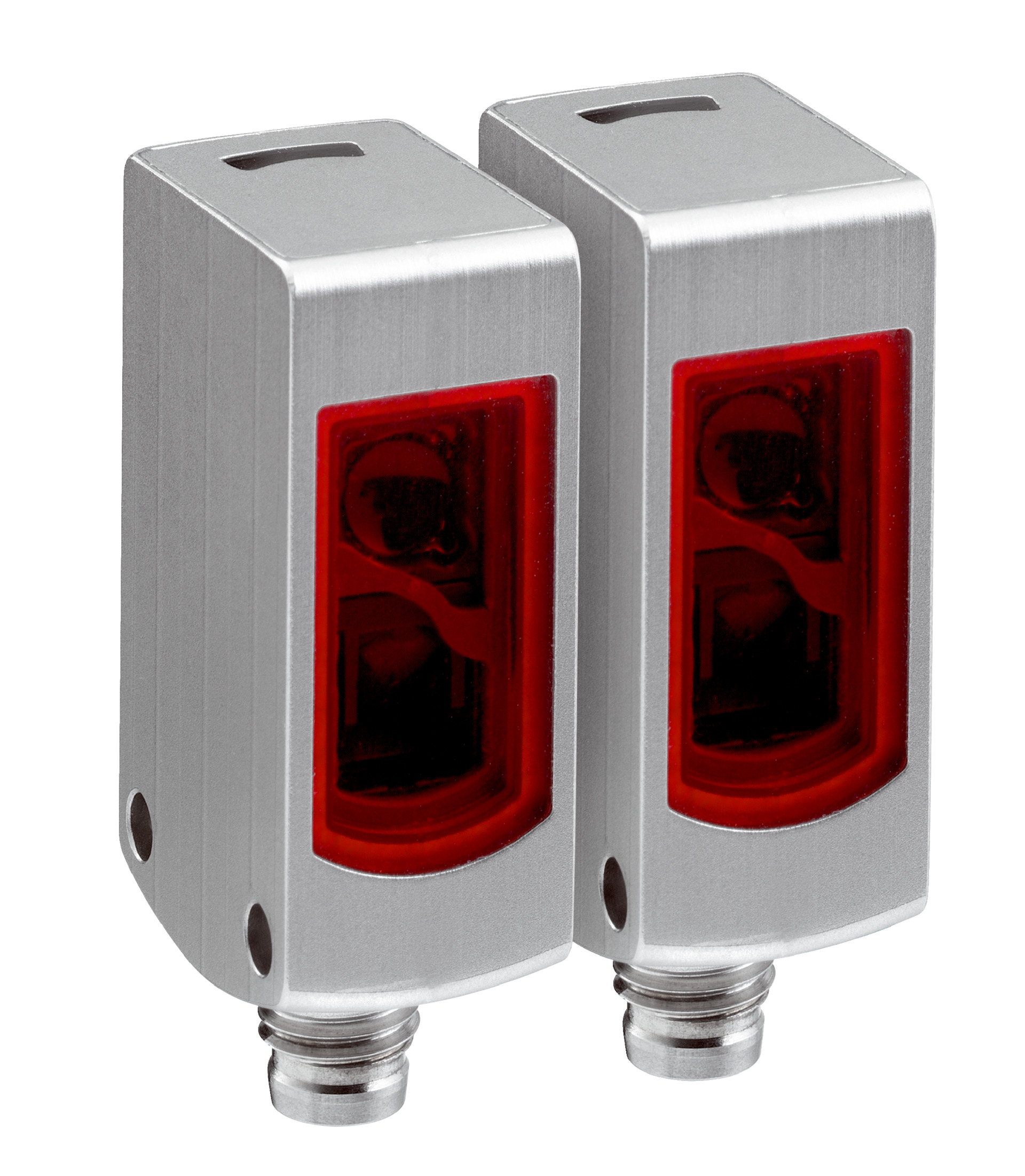

Through-Beam Photoelectric Sensor WSE4S-3E1330V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3E1330V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a visible red light source at 650 nm. With a robust stainless steel V4A housing and high protection ratings, it's perfect for hygienic and washdown environments, ensuring reliable object detection and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3E1330V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1052869
Alternatively Known As: Through-beam photoelectric sensor, Washdown photoelectric sensor, Industrial object sensor, Stainless steel photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 50 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Digital output: NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: Types A, B, C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms with switching frequency up to 1000 Hz
- NPN dark switching digital output with max 100 mA output current
- Robust metal housing with plastic PMMA front screen and PVC cable
- Certified for hygienic and washdown zones
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4S-3E1330V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
