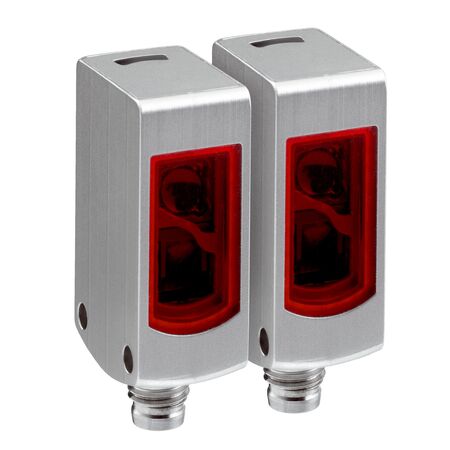

Through-Beam Photoelectric Sensor WSE4S-3F3130V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3F3130V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a robust stainless steel housing suitable for washdown environments. With a fast response time of under 0.5 ms and high protection ratings, this sensor is perfect for machine safety and process control in hygienic zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3F3130V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1052883
Alternatively Known As: Through-beam photoelectric sensor, WSE4S sensor, SICK photoelectric sensor, industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m (max 5 m)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 50 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Output type: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Connection: Cable with M8 3-pin connector, 150 mm length
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 4.5 m, max 5 m
- PinPoint LED light source with 650 nm wavelength
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Dark switching PNP digital output with max 100 mA output current
- Robust metal housing with plastic PMMA front screen and PVC cable
- Certified for photobiological safety and multiple international standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High protection ratings reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4S-3F3130V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
