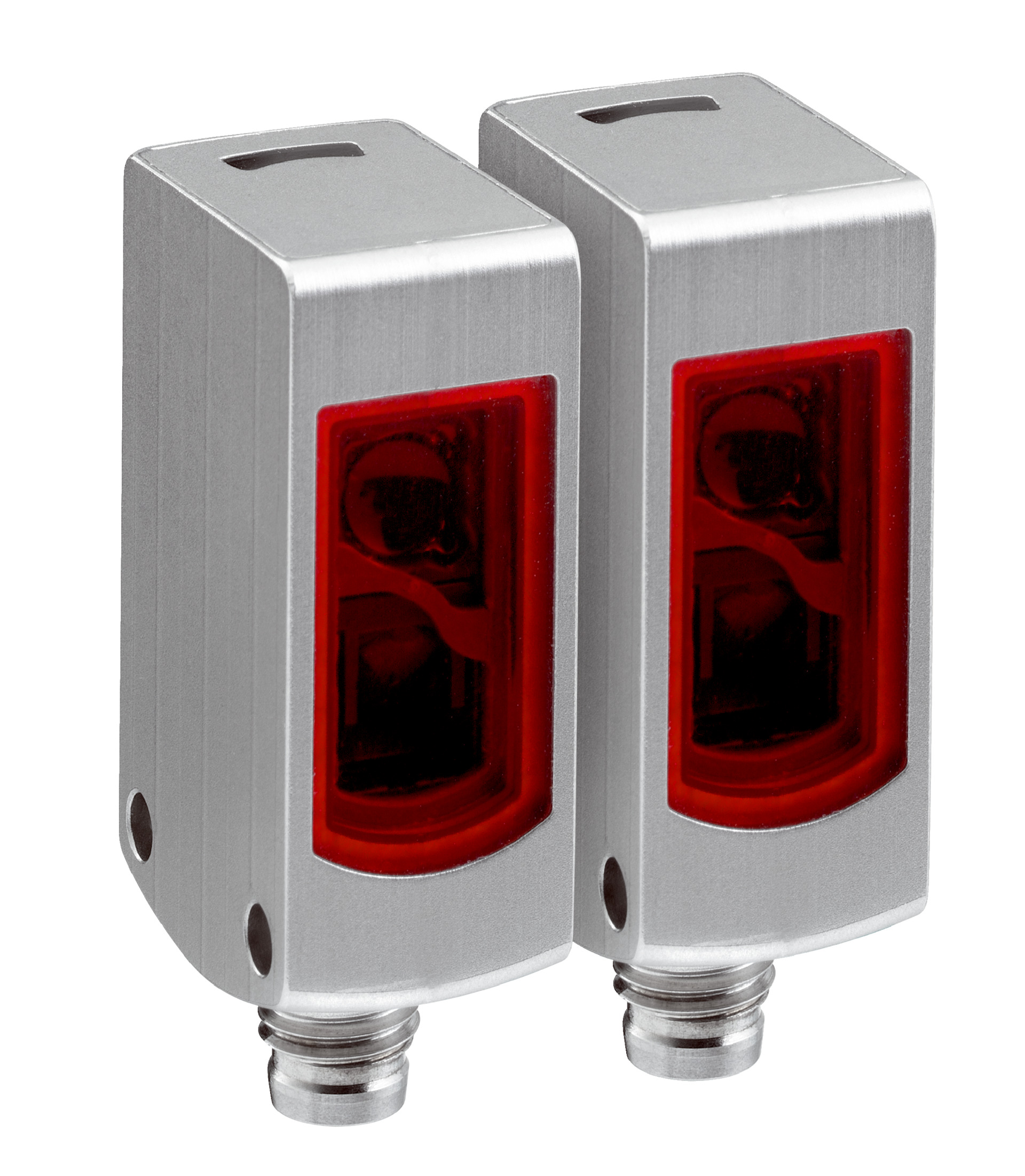

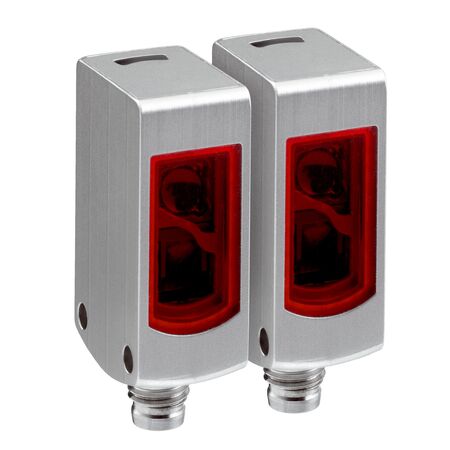

Through-Beam Photoelectric Sensor WSE4S-3F3430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3F3430V Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and high protection ratings (IP66/IP67/IP68/IP69K), it's perfect for hygienic and washdown environments, ensuring reliable object detection and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3F3430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1052885
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4S sensor, industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 50 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC
- Output type: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for durability
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms
- PNP dark switching output with max 100 mA current
- Suitable for hygienic and washdown environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE4S-3F3430V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
