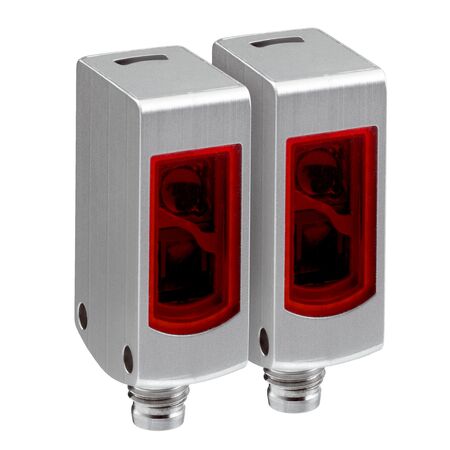

Through-Beam Photoelectric Sensor WSE4S-3P2430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3P2430V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms. With a robust stainless steel V4A housing and high protection ratings (IP66/IP67/IP68/IP69K), it's perfect for hygienic and washdown environments, ensuring reliable object detection and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3P2430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054784
Alternatively Known As: Through-beam photoelectric sensor, Washdown photoelectric sensor, Stainless steel photoelectric sensor, Industrial object sensor
Technical Specifications
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Response time: < 0.5 ms
- Switching frequency: 200 Hz
- Output type: PNP, light/dark switching
- Maximum output current: ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30°C to +70°C
- Weight: 45 g
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms
- PNP digital output with light/dark switching
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE4S-3P2430V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
