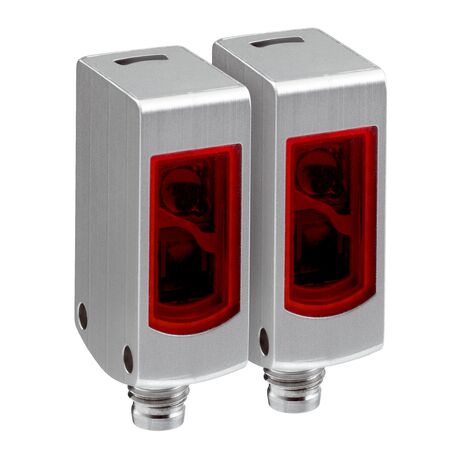

Through-Beam Photoelectric Sensor WSE4S-3N2430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3N2430V Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 4.5 meters and a visible red light source at 650 nm, it ensures reliable performance in various applications. Its robust stainless steel housing and high protection ratings make it ideal for washdown environments, while the fast response time of under 0.5 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3N2430V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054786
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4S sensor, industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wavelength: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Digital output type: NPN
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 200 Hz
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: –30 °C to +70 °C
- Storage temperature: –30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms with 200 Hz switching frequency
- NPN digital output with light/dark switching mode
- Complementary output function with circuit protection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High durability reduces replacement frequency and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4S-3N2430V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
