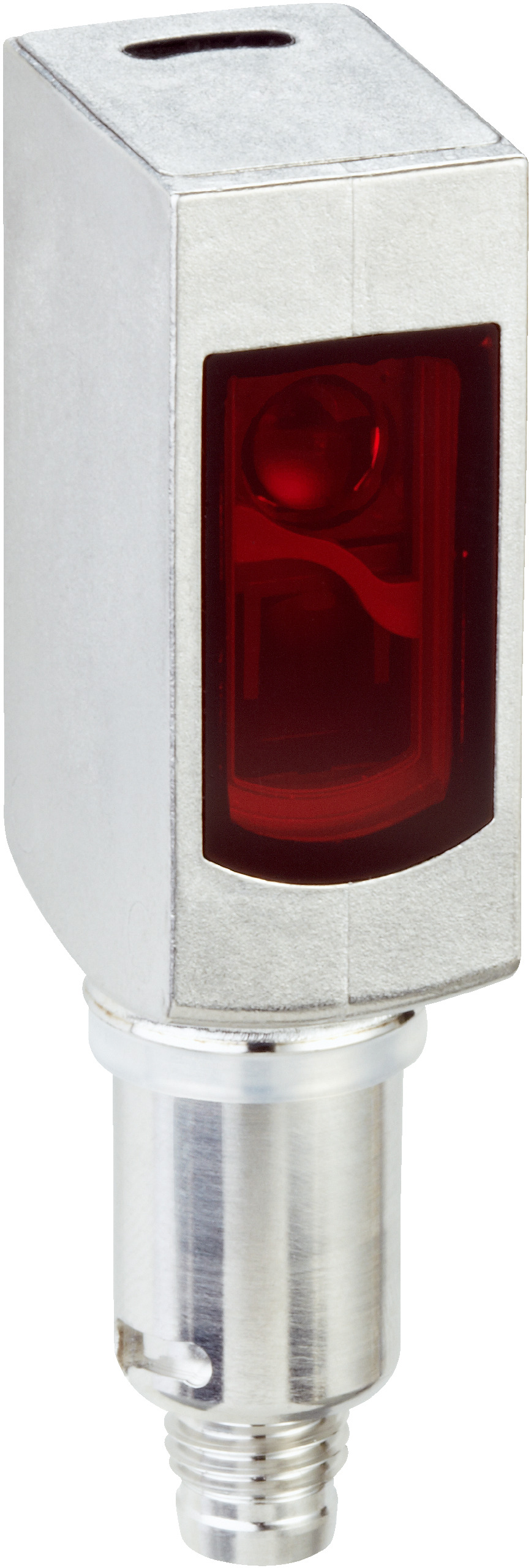

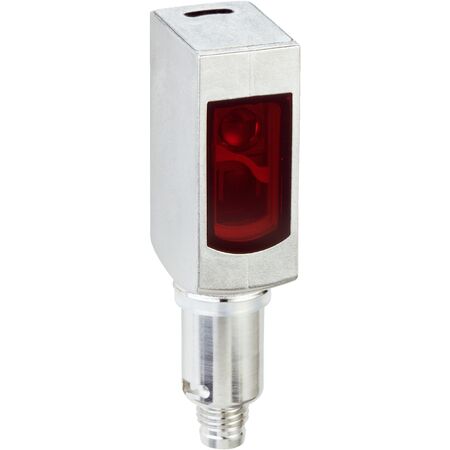

Through-Beam Photoelectric Sensor WSE4S-3P5230H | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3P5230H Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms. With a durable stainless steel V4A housing, it's perfect for hygienic environments and harsh conditions, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WSE4S-3P5230H | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054896
Alternatively Known As: Through-beam sensor, photoelectric sensor, stainless steel sensor, hygienic photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Light spot size at 2 m: Ø 50 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Protection class: III
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing: Metal, stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.14 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 4.5 meters
- Slim stainless steel V4A (1.4404, 316L) housing for hygienic environments
- IP66, IP67, IP68, IP69K rated for harsh conditions
- Fast response time under 0.5 ms with switching frequency up to 1000 Hz
- PNP digital output with light/dark switching mode
- Complementary output function with circuit protection
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High protection ratings reduce need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WSE4S-3P5230H Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic applications.
