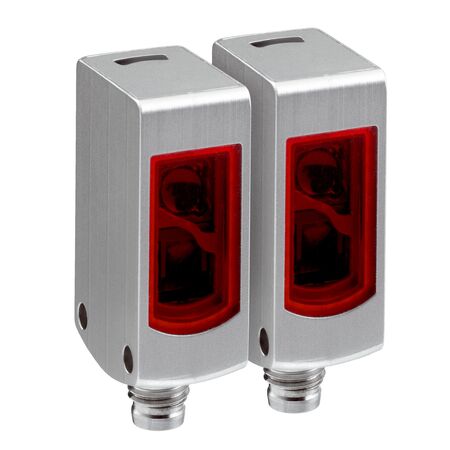

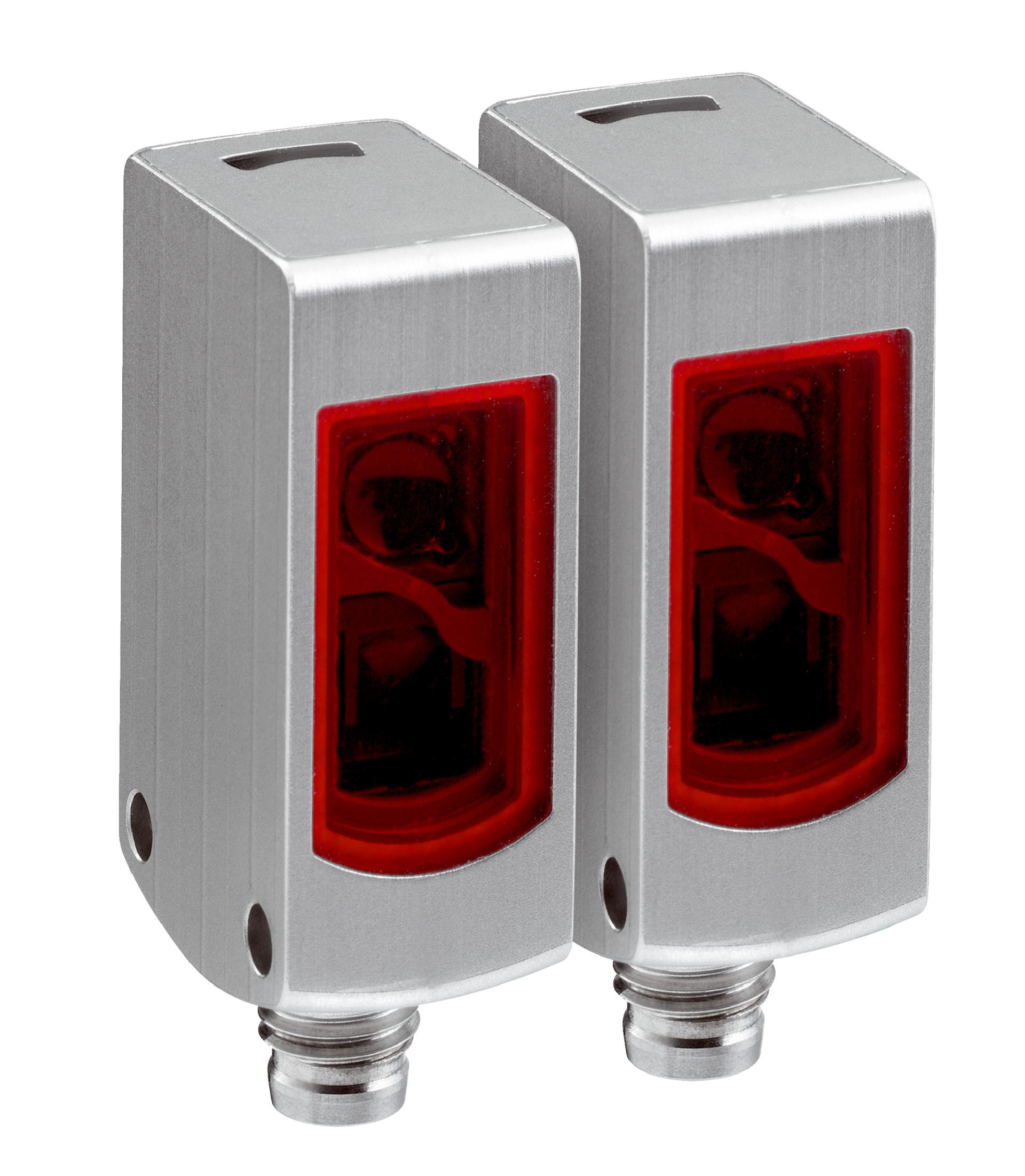

Through-Beam Photoelectric Sensor WSE4S-3P3230V | 4.5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4S-3P3230V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms. With a robust stainless steel V4A housing and high protection ratings (IP66 to IP69K), it's perfect for hygienic and washdown environments, ensuring reliable object detection and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wave length: 650 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Digital output: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Circuit protection: A, B, C
- Housing: Metal, Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC
- Connection: Cable with M8 male connector, 4-pin
- Length of cable: 150 mm
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 m
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms
- PNP digital output with light switching mode
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WSE4S-3P3230V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
