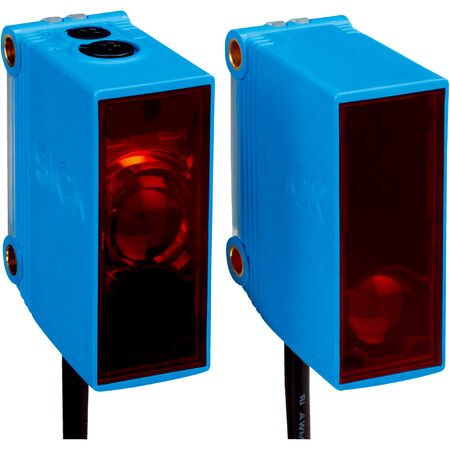

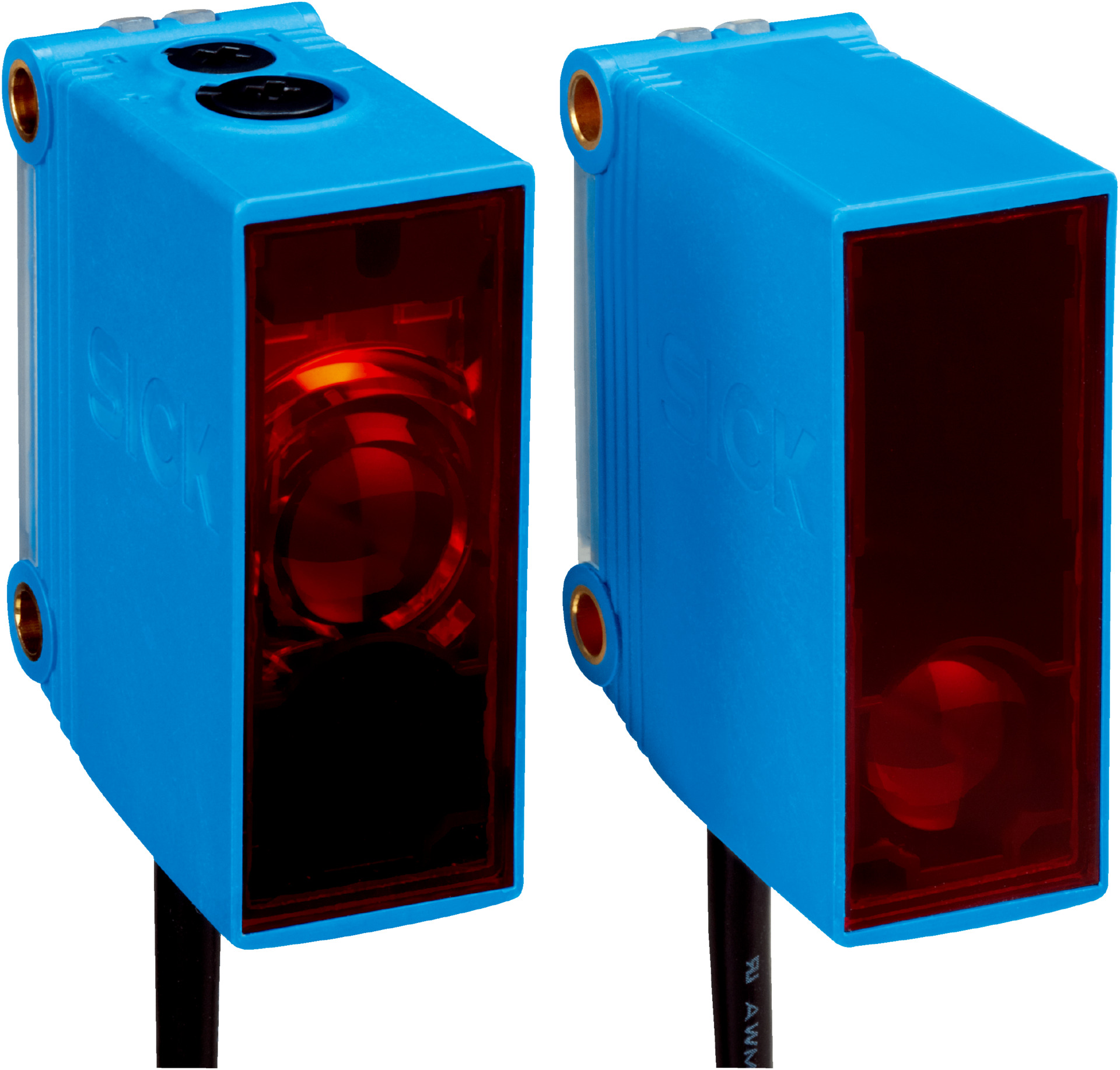

Through-beam Photoelectric Sensor GSE10-N1212 | 40m Sensing Range | IP67 Rated | Adjustable Potentiometer | by SICK
The GSE10-N1212 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 40 meters with visible red light. Its adjustable potentiometer allows for precise setup, while the IP67 rated enclosure ensures durability in harsh environments. Perfect for object detection and safety monitoring in manufacturing lines, this sensor is a reliable choice for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with PinPoint LED light source
- Adjustable potentiometer with 270° rotation
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 2 meter PVC cable
- Light/dark switching mode selectable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE10-N1212 Through-beam Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety monitoring applications.
