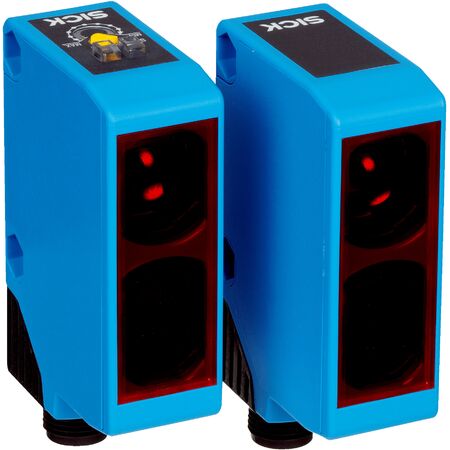

Through-Beam Photoelectric Sensor WSE250-2N2431 | 40m Sensing Range | IP67 Enclosure | Fast Response Time | by SICK
The WSE250-2N2431 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 40 m and a fast response time of ≤ 0.5 ms. With its robust IP67-rated housing and selectable light/dark switching mode, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 40 m (max 50 m)
- Focus angle: Approx. 2°
- Light source: Visible red LED
- Light spot size at 20 m: Ø 0.6 m
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: 20 mA
- Power consumption receiver: 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Angle of reception: 20°
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 65mm x 44mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 40 m, max 50 m
- Rectangular housing design with IP67 enclosure rating
- Fast response time ≤ 0.5 ms and switching frequency 1,000 Hz
- Selectable light/dark switching mode via control cable
- Robust plastic ABS housing with PMMA optics
- Male connector M12, 4-pin connection
- Supplied with BEF-W250 mounting bracket
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA per sender and receiver reduces energy usage
- Durable IP67 rated housing ensures long service life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE250-2N2431 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
