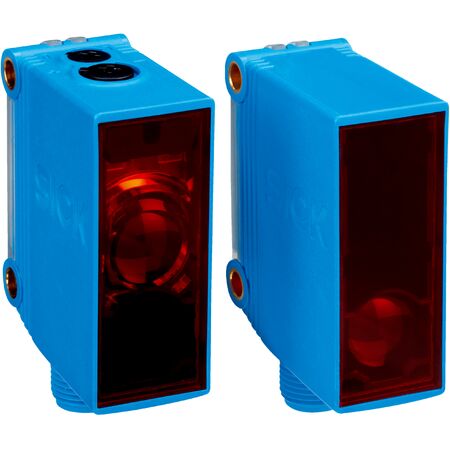

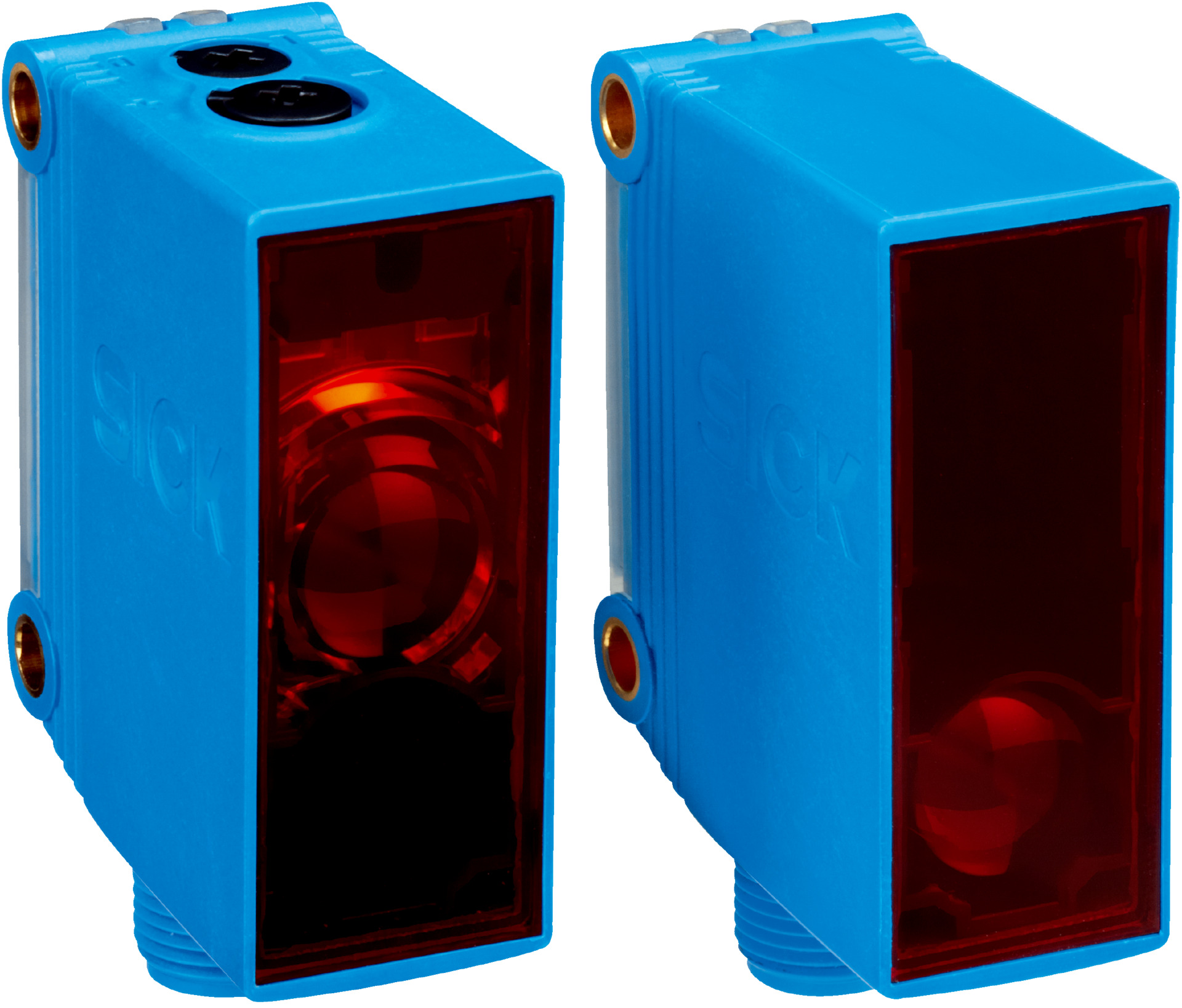

Through-beam Photoelectric Sensor GSE10-P4212 | 40m Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The GSE10-P4212 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 40 meters with visible red light. Ideal for object detection and safety monitoring, this robust sensor features a high switching frequency of 1,000 Hz and an IP67 rated enclosure for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light (625 nm wavelength)
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Test input: Sender OFF at 'Test' 0 V
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Potentiometer adjustment with 270° rotation
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust plastic housing made of ABS/PMMA
- Male connector M12, 4-pin for easy connection
- Light/dark switching mode selectable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-P4212 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
