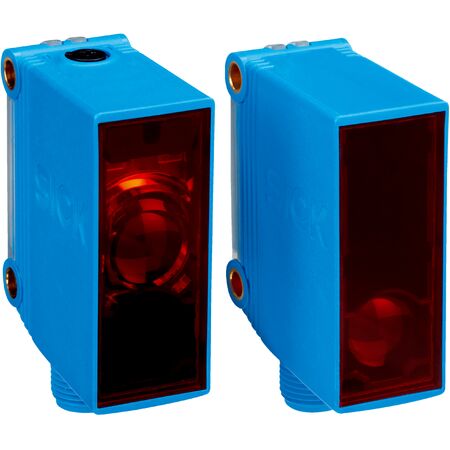

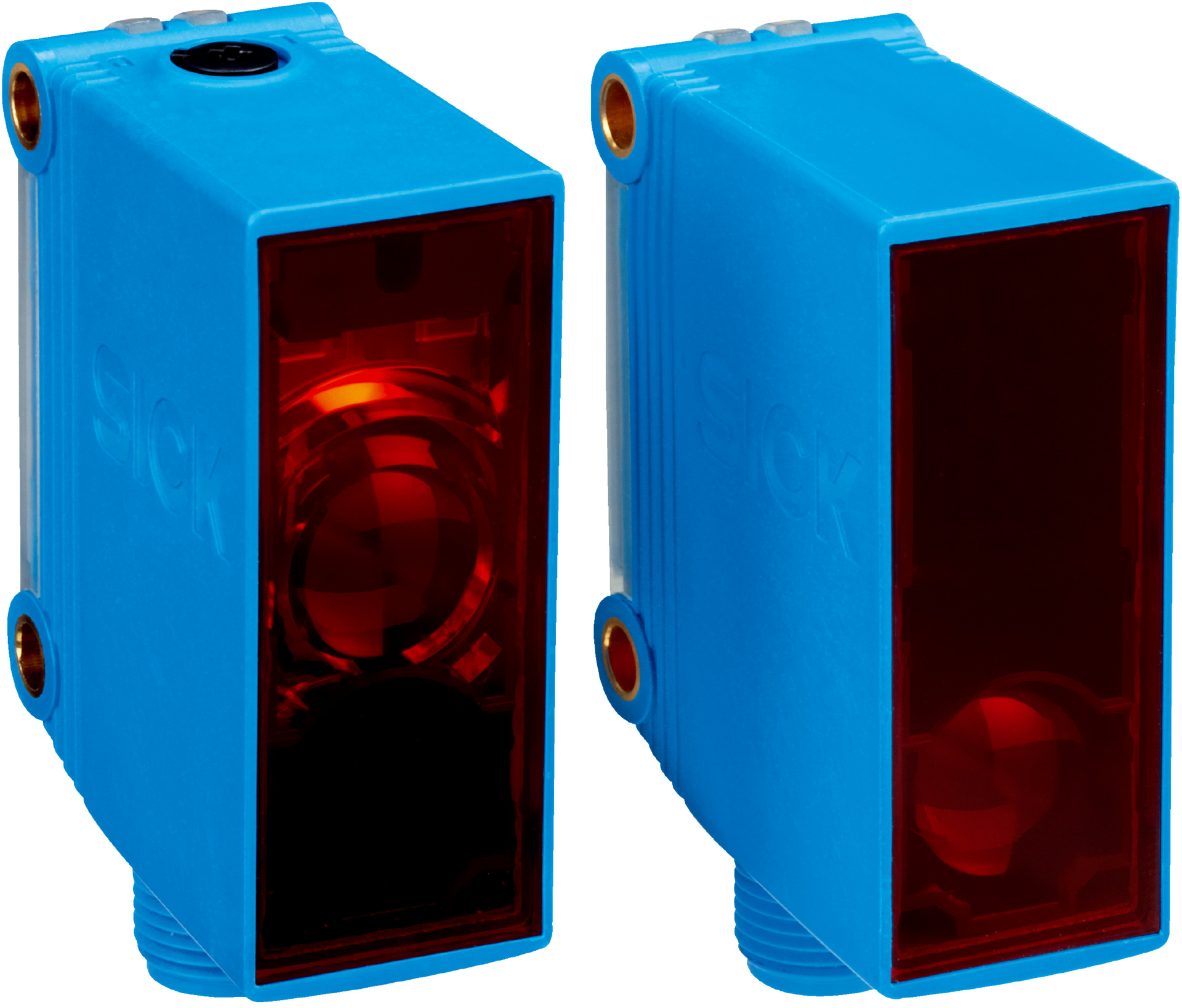

Through-Beam Photoelectric Sensor GSE10-P4112 | 40m Sensing Range | IP67 Rated | by SICK
The GSE10-P4112 Through-beam Photoelectric Sensor is designed for industrial automation, offering a maximum sensing range of 40 meters and a high switching frequency of 1,000 Hz. With its durable IP67 rated enclosure and visible red light, this sensor is perfect for object detection in safety and security systems, material handling, and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wavelength: 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with PinPoint LED light source
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode
- Male connector M12, 4-pin connection
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Packaging and manufacturing process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤15 mA sender and ≤20 mA receiver reduces energy usage
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-P4112 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
