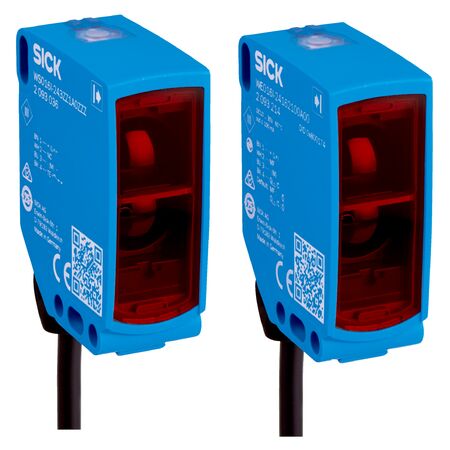

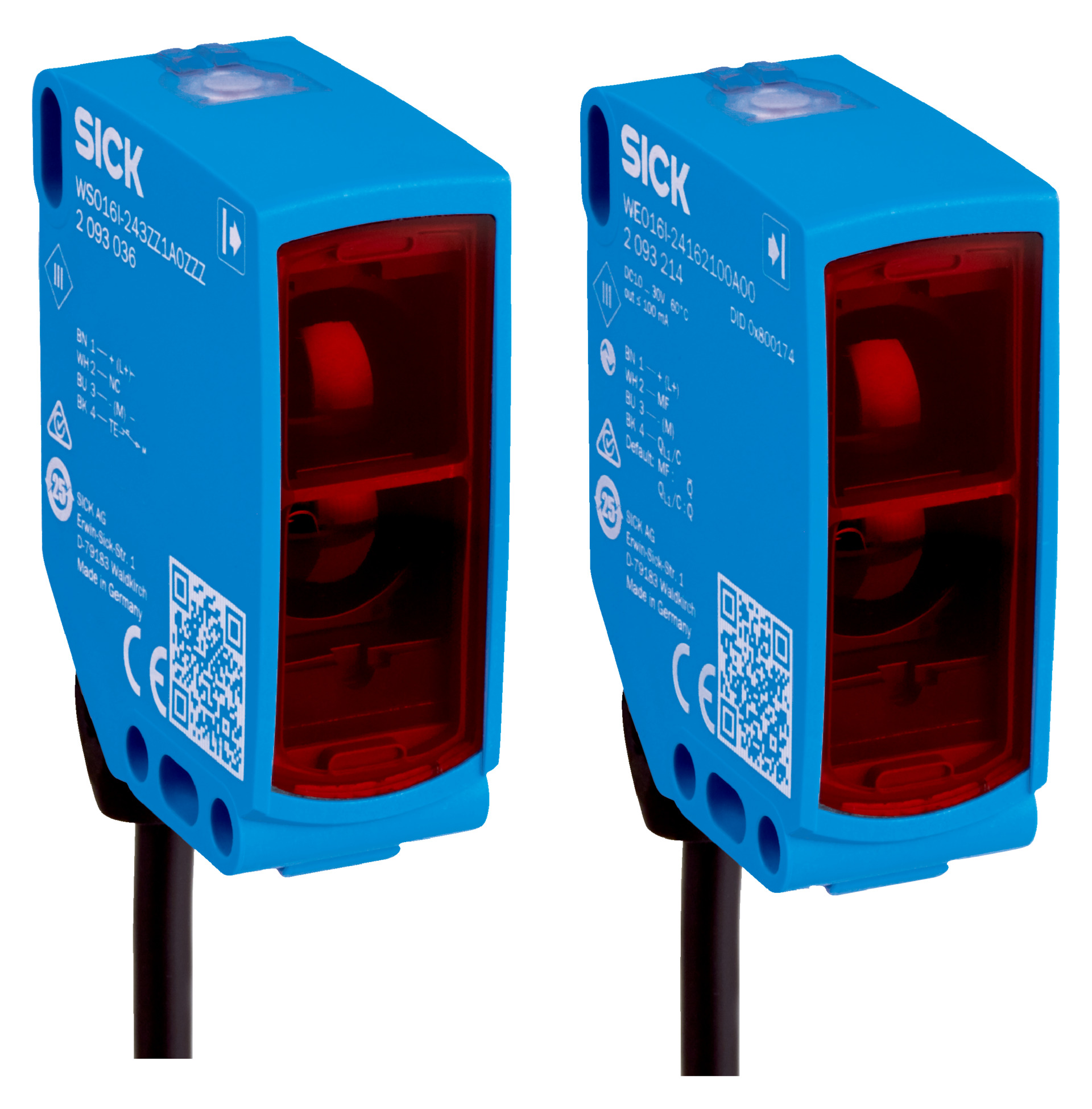

Through-Beam Photoelectric Sensor | 45m Sensing Range | Infrared LED | IP66/IP67/IP69 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters with optimal performance at 30 meters. Featuring an infrared LED light source and robust IP66/IP67/IP69 housing, this sensor is perfect for object detection in material handling and manufacturing processes, ensuring high reliability and durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 45 m (recommended 0 m to 30 m for best performance)
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 110 mm at 8 m distance
- LED risk group: Free group according to EN 62471
- Average LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load, < 50 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Connection: 4-wire cable, 2 m length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- IO-Link: Version 1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.2 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended best performance up to 30 meters
- Infrared LED light source with point-shaped light spot
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- High shock and vibration resistance
- Dual complementary push-pull digital outputs with light/dark switching
- Status indication via blue, green, and yellow LEDs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE16I-1H162100A00 Through-beam Photoelectric Sensor is available for immediate purchase. Ideal for industrial automation and safety applications requiring precise object detection.
