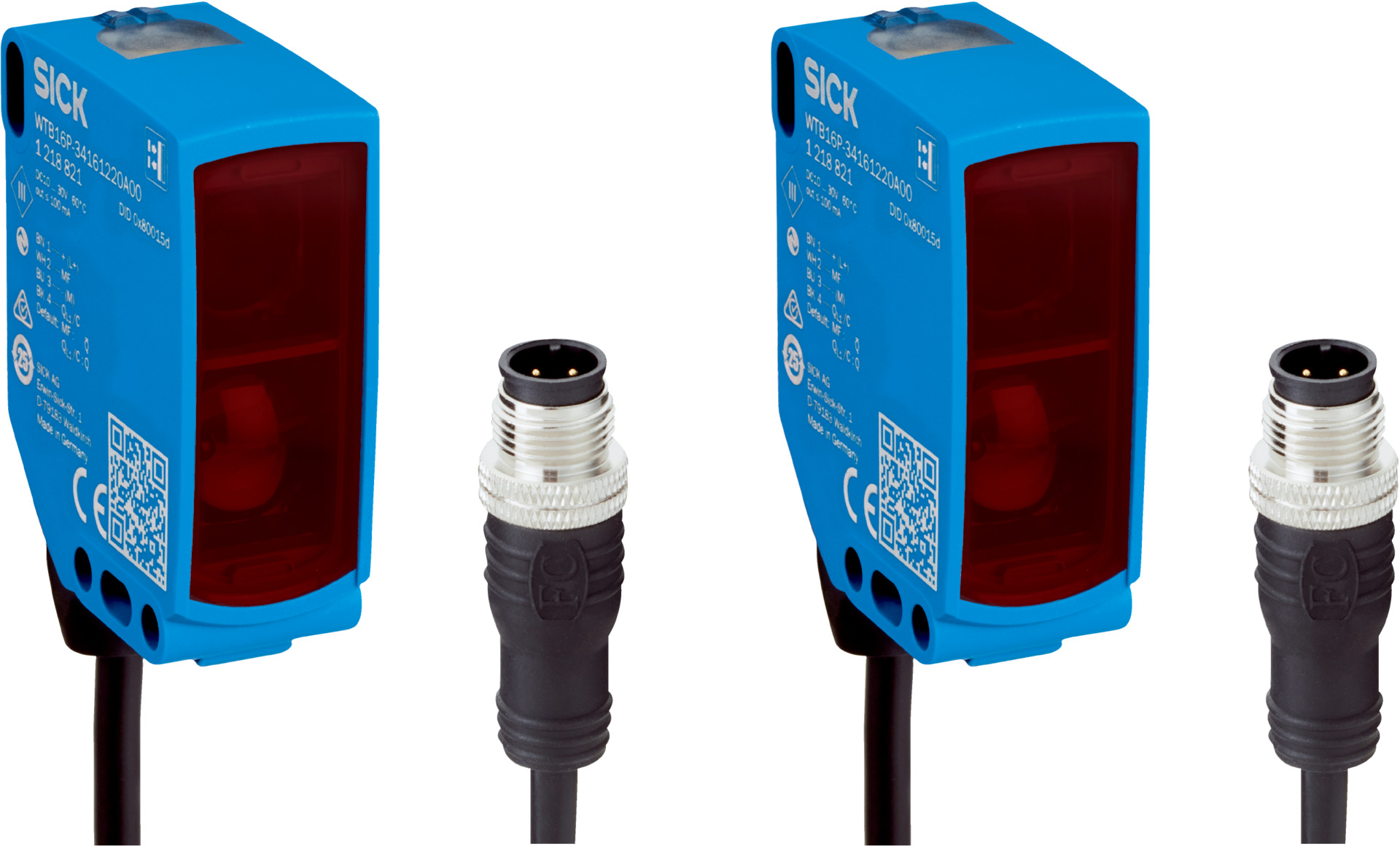

Through-Beam Photoelectric Sensor | 45m Sensing Range | IP66/IP67/IP69 Protection | Infrared LED | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 45 meters and an infrared LED light source with an 850 nm wavelength. With a robust IP66/IP67/IP69 rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 45 m (recommended 0 m to 30 m)
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 110 mm at 8 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Housing material: Plastic VISTAL® with PMMA front screen
- Cable: PVC, 4-pin M12 male connector, 318 mm length
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.14 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 45 m
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with Ø 110 mm at 8 m distance
- High protection rating: IP66, IP67, IP69
- IO-Link communication interface for sensor parameter configuration
- Fast response time ≤ 500 µs and switching frequency up to 1,000 Hz
- Robust plastic VISTAL® housing with PMMA front screen
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2,000 Hz
- LED indicators for alignment aid, operating status, and light beam status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

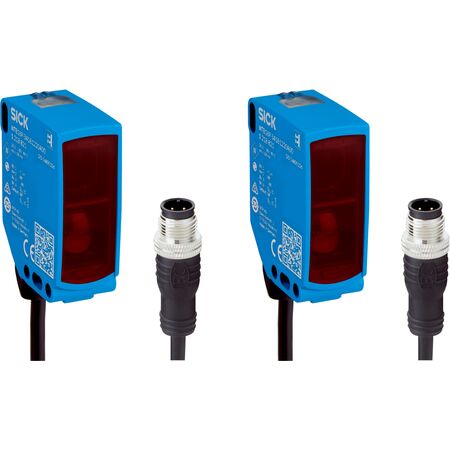

The SICK WSE16I-34162100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
