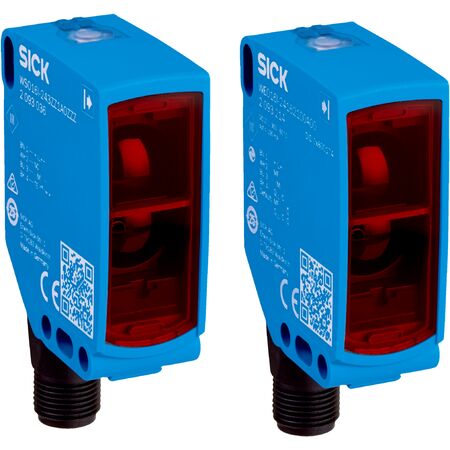

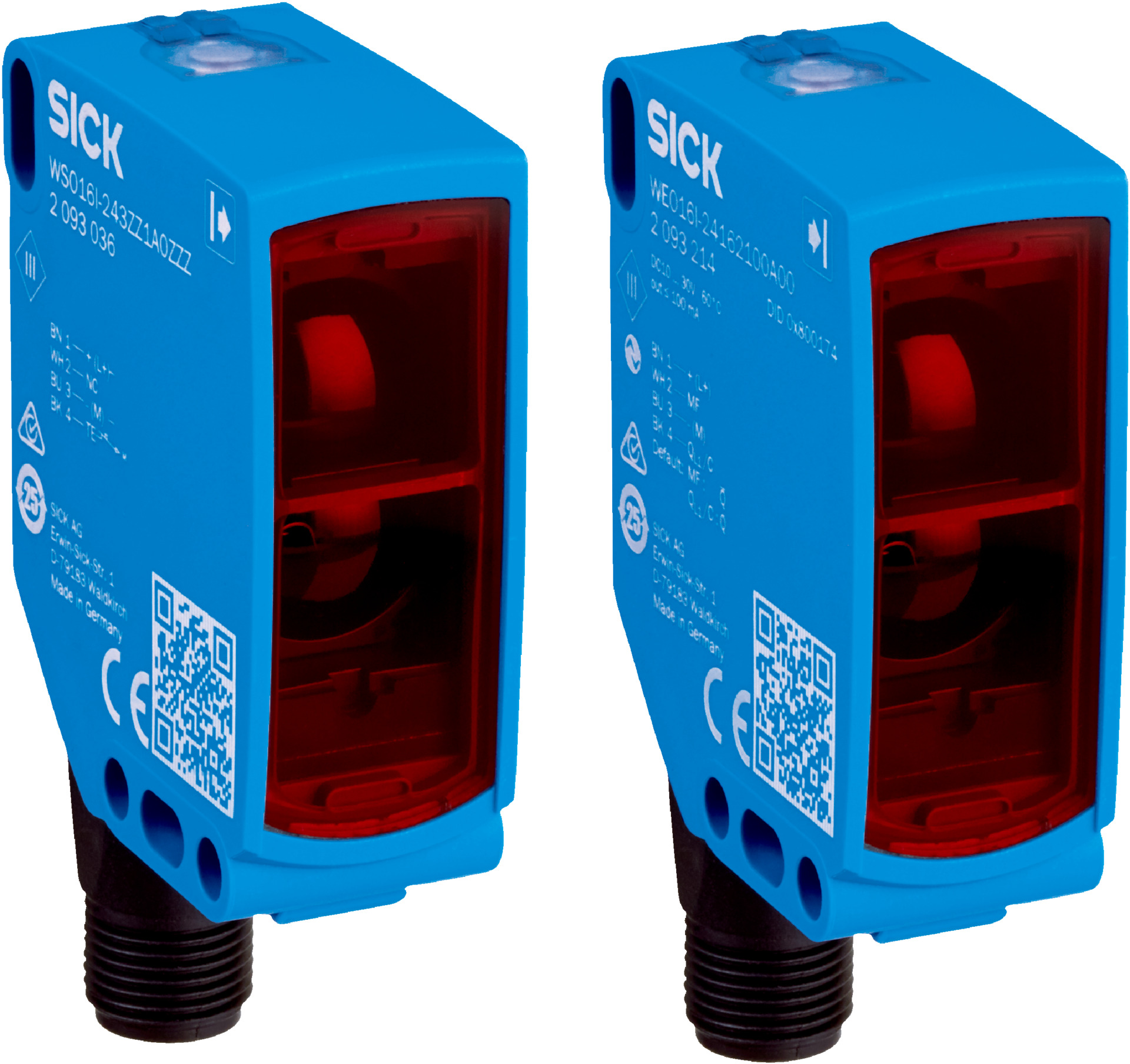

Through-Beam Photoelectric Sensor WSE16P-24162100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-24162100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters with a recommended performance of 30 meters. Featuring a PinPoint LED with a 635 nm wavelength and a robust IP66/IP67/IP69 rated housing, this sensor ensures reliable object detection and safety monitoring in manufacturing processes, making it ideal for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m, recommended 0 to 30 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Output type: 2 complementary push-pull PNP/NPN outputs
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended best performance up to 30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Complementary push-pull PNP/NPN outputs with light/dark switching
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2,000 Hz
- Status indication via blue, green, and yellow LEDs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Warranty terms as provided by SICK, typically 1-3 years depending on region and application.
Available Now
The SICK WSE16P-24162100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
