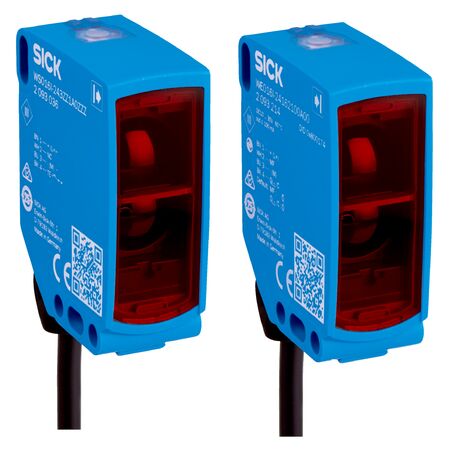

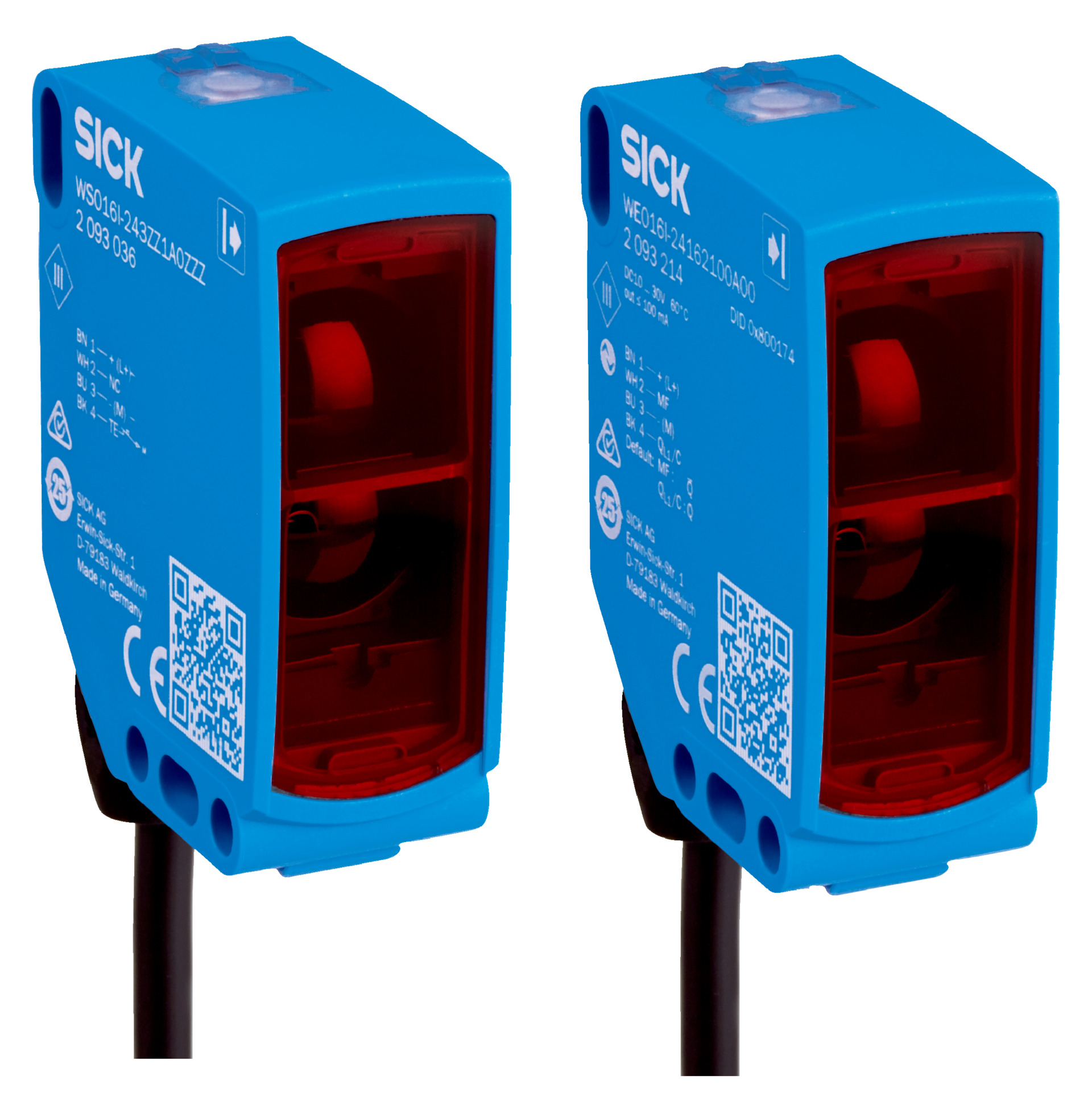

Through-Beam Photoelectric Sensor WSE16P-1H162100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-1H162100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters and a fast response time of ≤ 500 µs. With its robust IP66/IP67/IP69 rated housing and PinPoint LED technology, this sensor ensures reliable object detection in various applications, making it ideal for material handling and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m (recommended 0 to 30 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- LED indicators: Blue (alignment), Green (power/IO-Link), Yellow (beam status)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.2 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range 0-30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40°C to +60°C
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Multiple LED indicators for alignment, operation, and beam status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE16P-1H162100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
