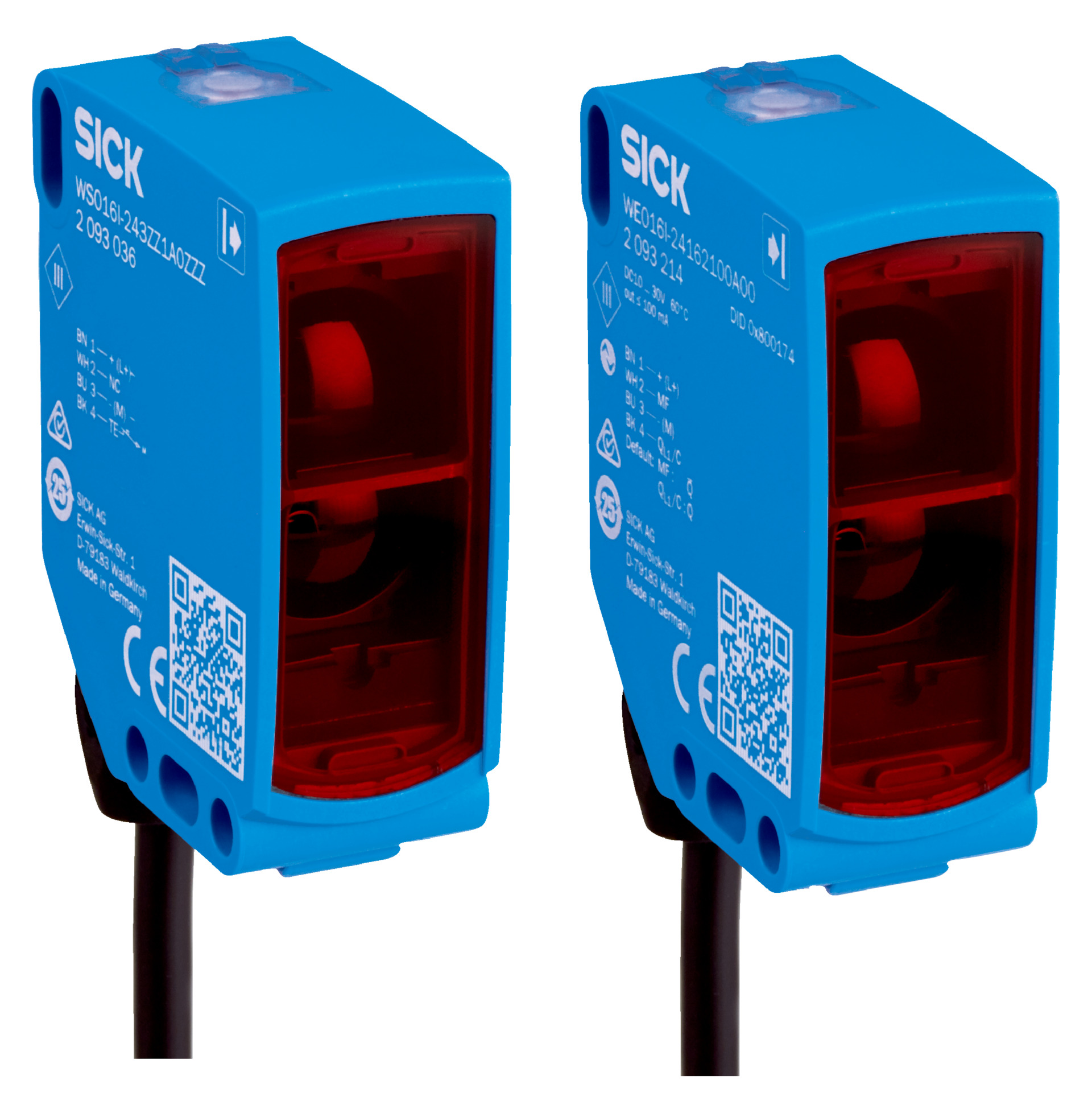

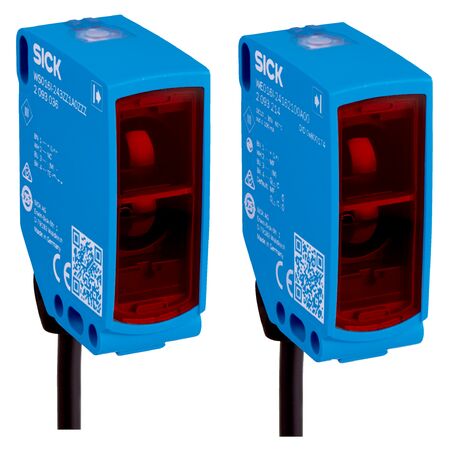

Through-Beam Photoelectric Sensor WSE16P-1H161100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-1H161100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters and a fast response time of ≤ 500 µs. With a robust IP66/IP67/IP69 protection rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 45 m (recommended 0 m to 30 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Protection class: III
- Digital outputs: 2 complementary push-pull PNP/NPN
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.2 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 45 m
- PinPoint LED visible red light with 635 nm wavelength
- High protection rating IP66, IP67, and IP69
- IO-Link communication interface for sensor configuration
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time ≤ 500 µs and switching frequency up to 1,000 Hz
- Durable with average LED service life of 100,000 hours
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2,000 Hz
- Status indication via blue, green, and yellow LEDs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE16P-1H161100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
