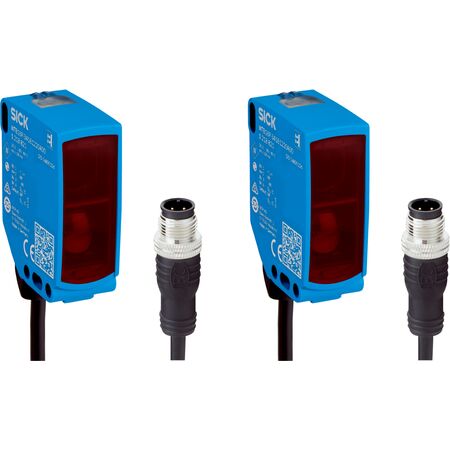

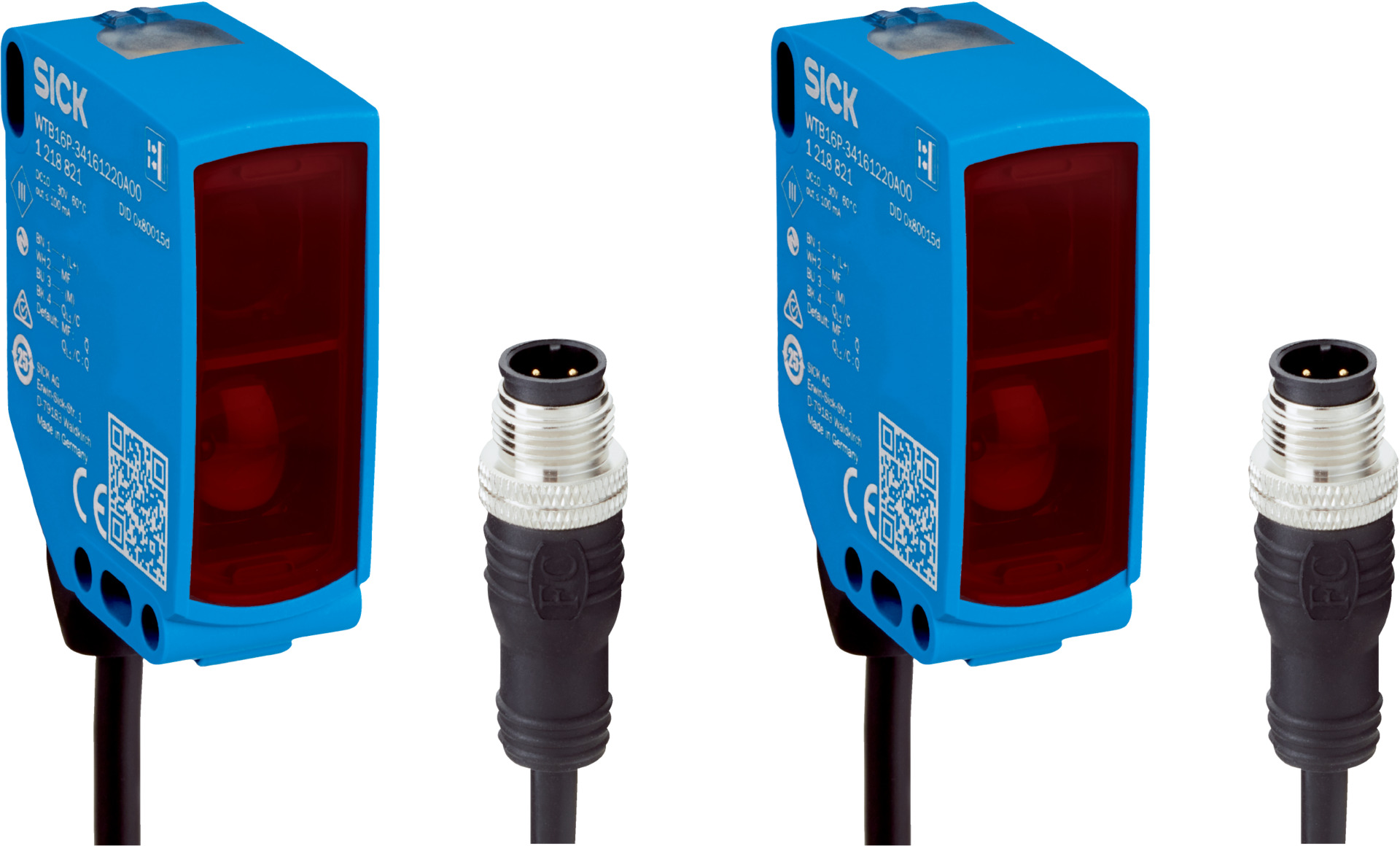

Through-Beam Photoelectric Sensor WSE16P-34161100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-34161100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters and a PinPoint LED light source with a 635 nm wavelength. With robust IP66, IP67, and IP69 ratings, this sensor is perfect for object detection in harsh environments, ensuring high precision and reliability in material handling and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 45 m, recommended 0 m to 30 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 90 mm at 8 m distance
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Housing material: Plastic VISTAL®
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.14 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 45 m
- PinPoint LED visible red light with a wavelength of 635 nm
- High precision with a point-shaped light spot and minimal beam dispersion
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- LED indicators for alignment, operating status, and light beam status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with a long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE16P-34161100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
