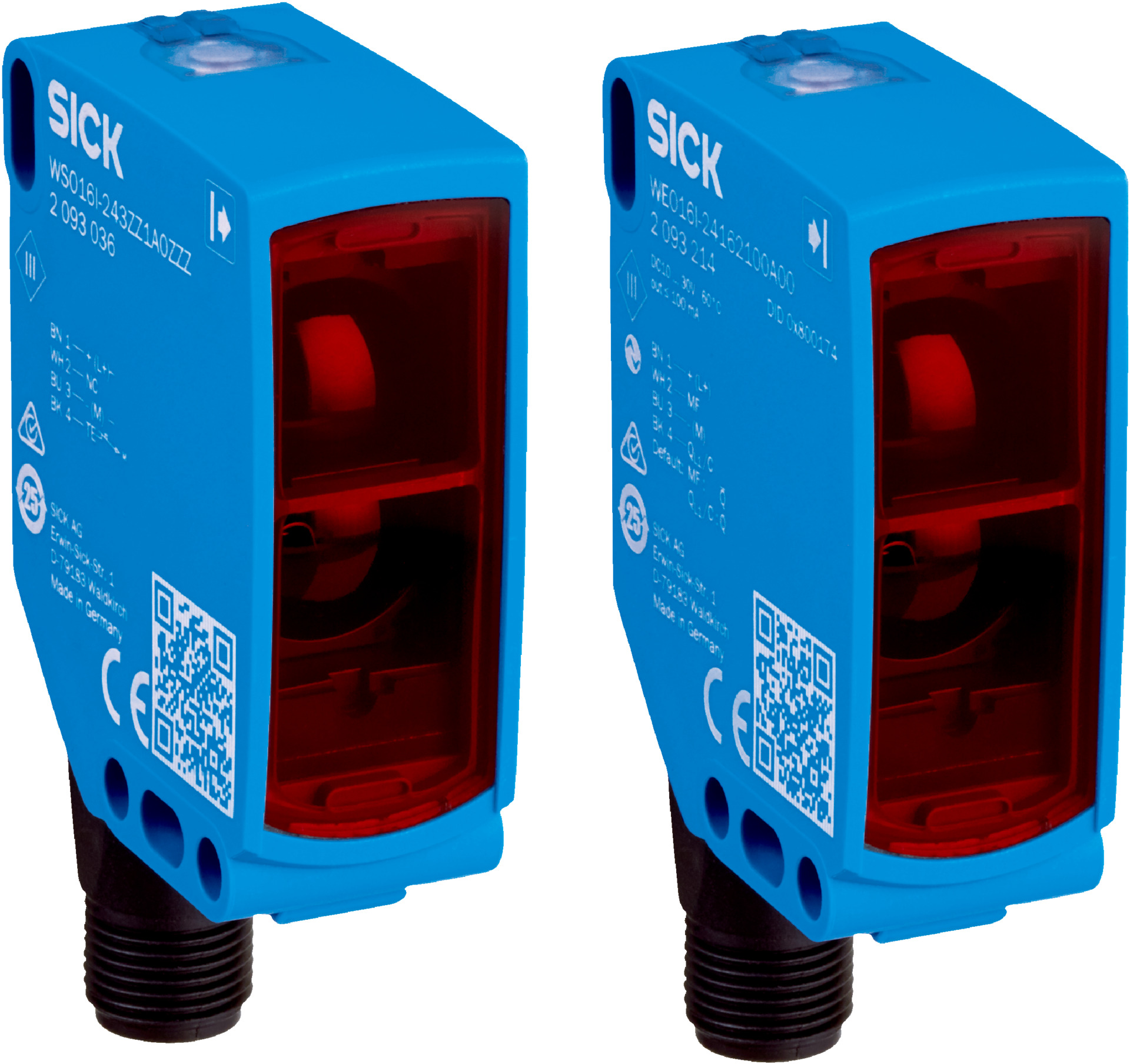

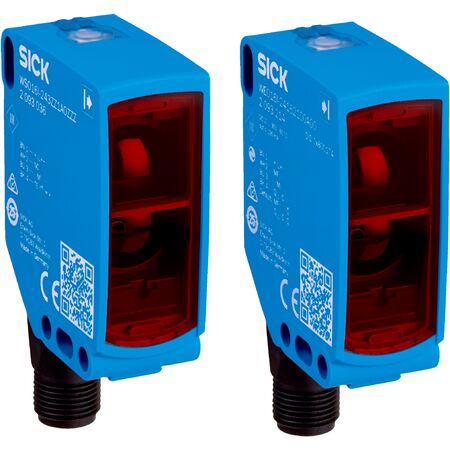

Through-Beam Photoelectric Sensor WSE16P-24162100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-24162100A00 through-beam photoelectric sensor offers a remarkable sensing range of up to 45 meters, making it ideal for industrial automation and safety applications. With a robust IP66/IP67/IP69 rated housing and a long LED service life of 100,000 hours, this sensor ensures reliable performance in harsh environments. Perfect for object detection and monitoring in manufacturing processes, it features fast response times and complementary push-pull digital outputs for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m (recommended 0 to 30 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Housing material: Plastic VISTAL®
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1 with 2.3 ms cycle time
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range up to 30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Complementary push-pull digital outputs with light/dark switching
- Wide ambient operating temperature range from -40°C to +60°C
- Shock and vibration resistant for harsh environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE16P-24162100A00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
