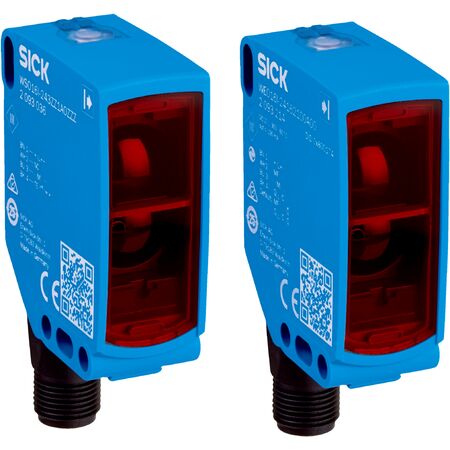

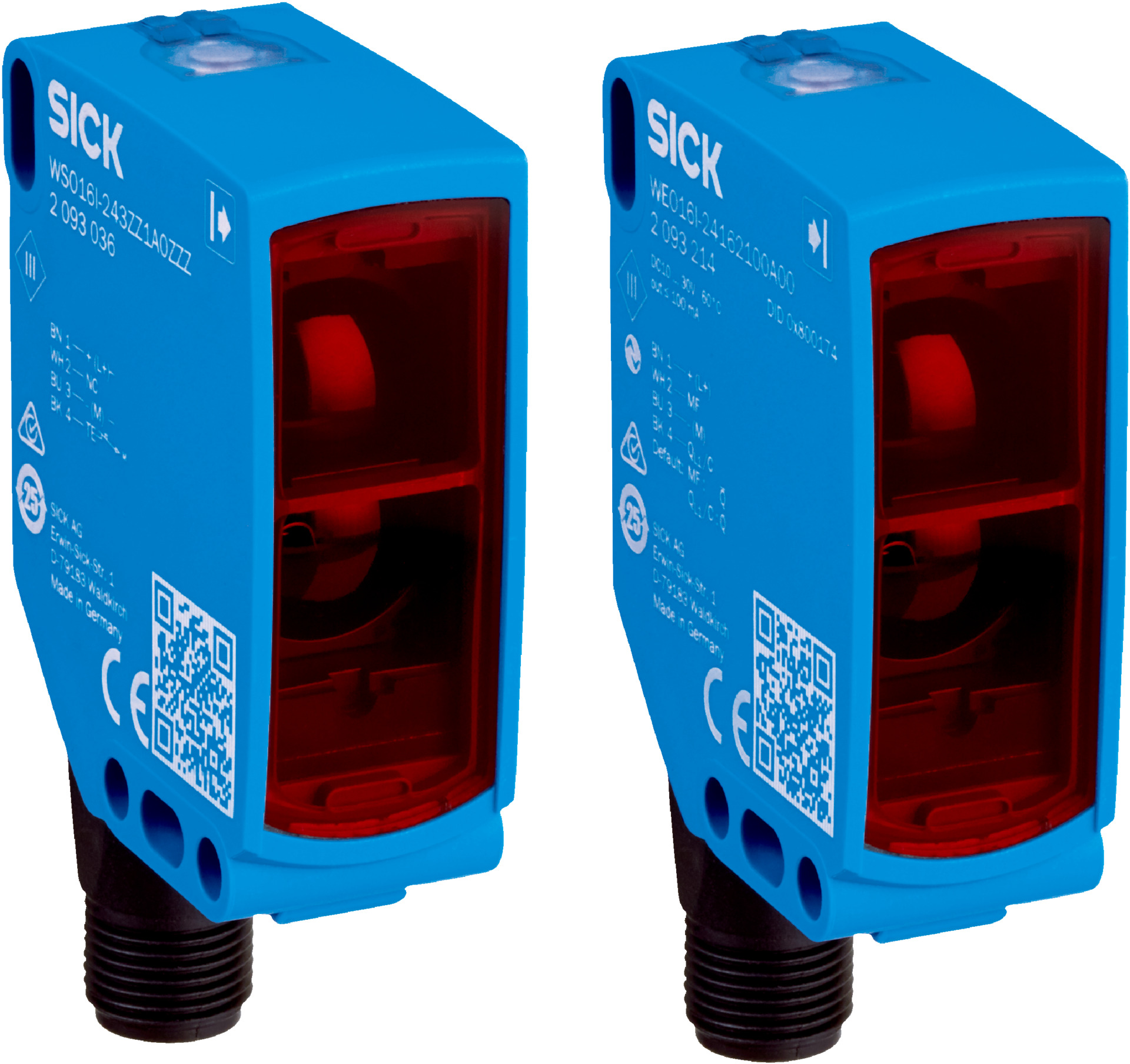

Through-Beam Photoelectric Sensor WSE16P-24161100A00 | 45m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The WSE16P-24161100A00 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 45 meters and a robust IP66/IP67/IP69 rated housing. With a fast response time of ≤ 500 µs and a long LED service life of 100,000 hours, this sensor is perfect for object detection in material handling and manufacturing processes, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 45 m (recommended 0 m to 30 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Connection: Male M12, 4-pin connector
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range up to 30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Complementary push-pull digital outputs with light/dark switching
- Wide ambient operating temperature range from -40°C to +60°C
- Shock and vibration resistant for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE16P-24161100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
