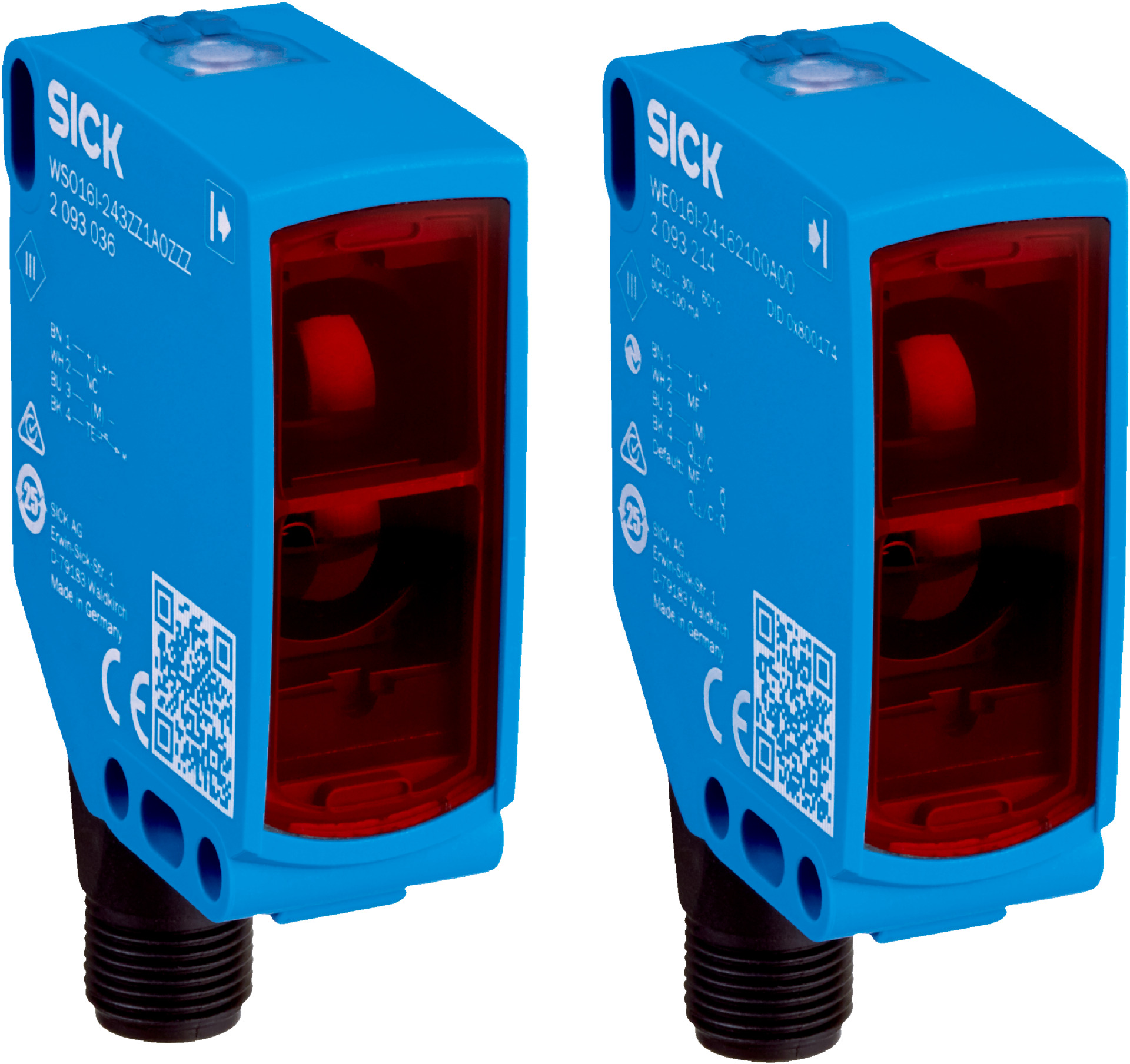

Through-Beam Photoelectric Sensor | 45m Sensing Range | PinPoint LED | IP66/IP67/IP69 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 45 meters and a PinPoint LED light source with a 635 nm wavelength. With a robust IP66/IP67/IP69 rated housing, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m (recommended 0 to 30 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤30 mA without load
- Output type: 2 complementary push-pull outputs (PNP/NPN), dark switching
- Response time: ≤500 µs
- Switching frequency: up to 1,000 Hz
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Housing material: Plastic VISTAL®
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range 0-30 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40°C to +60°C
- Fast response time up to 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Multiple LED indicators for alignment, operation, and status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment, wiring, and configuration using IO-Link.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

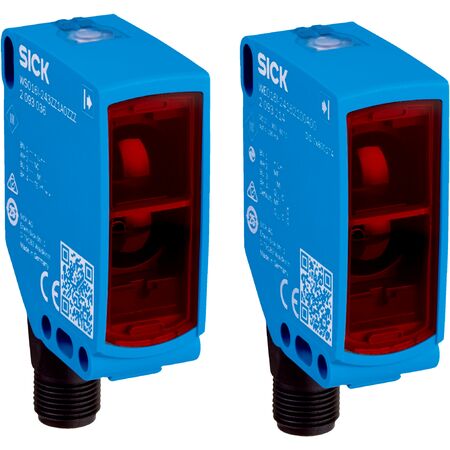

The SICK WSE16P-24163100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
