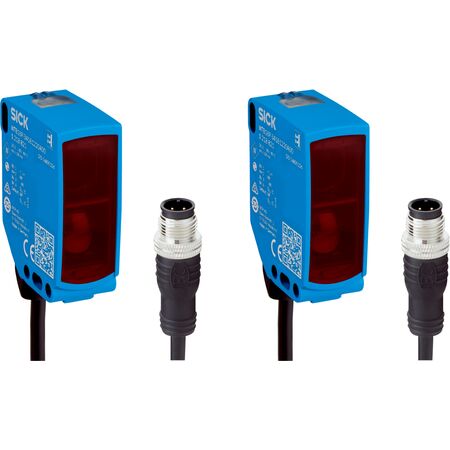

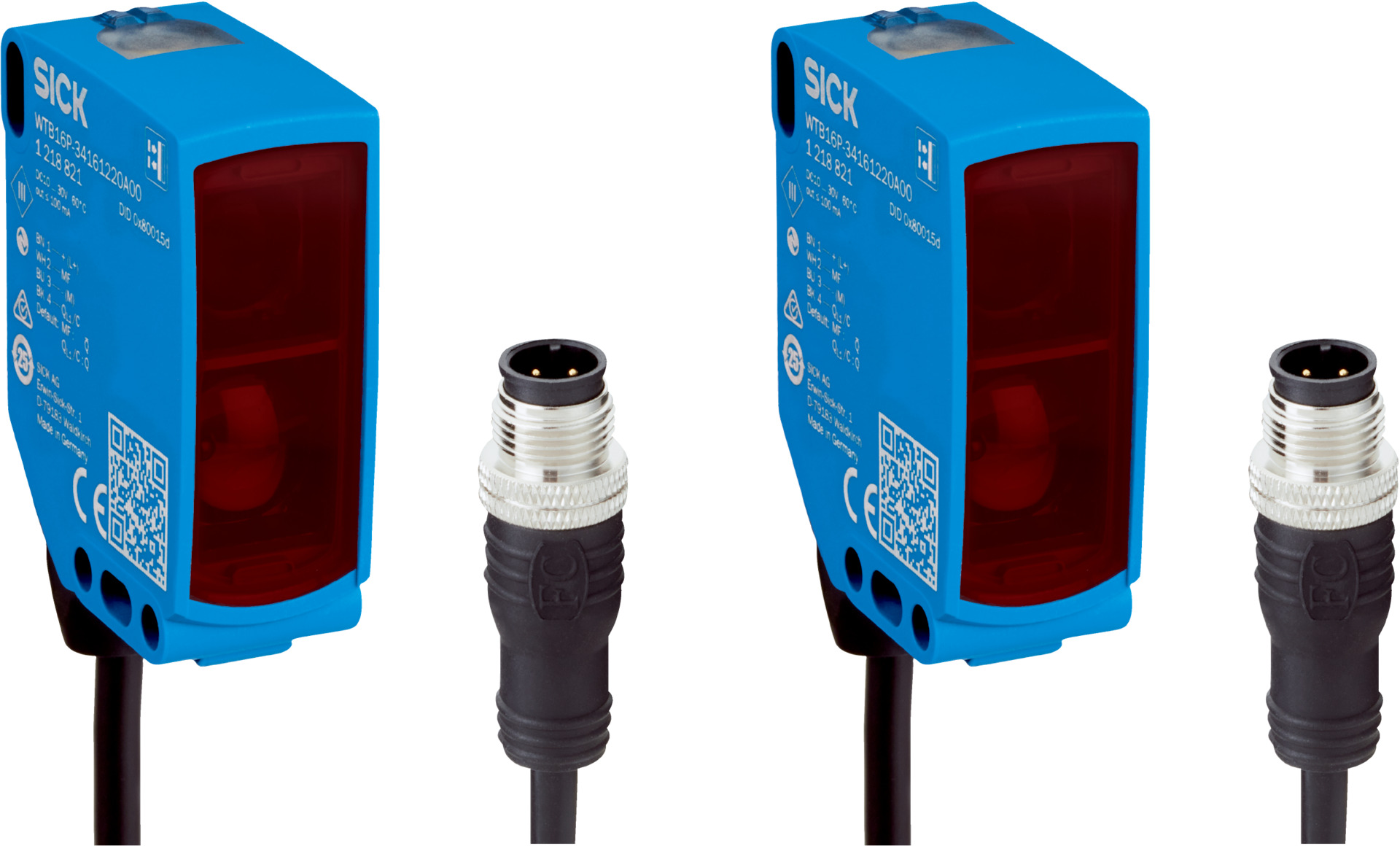

Through-Beam Photoelectric Sensor WSE16P-34162100A00 | 45m Sensing Range | PinPoint LED Light Source | IP66/IP67/IP69 Rated | by SICK
The WSE16P-34162100A00 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 45 meters and a fast response time of ≤ 500 µs. With its robust IP66/IP67/IP69 rated housing and PinPoint LED light source, this sensor ensures reliable object detection and safety monitoring in manufacturing processes, making it ideal for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 to 45 m (max), recommended 0 to 30 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Output type: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Housing material: Plastic VISTAL®
- LED indicators: Blue (alignment), Green (power/IO-Link), Yellow (light beam status)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.14 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 45 meters with recommended range 0 to 30 meters
- PinPoint LED light source with visible red light at 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Operating temperature range from -40°C to +60°C
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Multiple LED indicators for alignment, operation, and status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE16P-34162100A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
