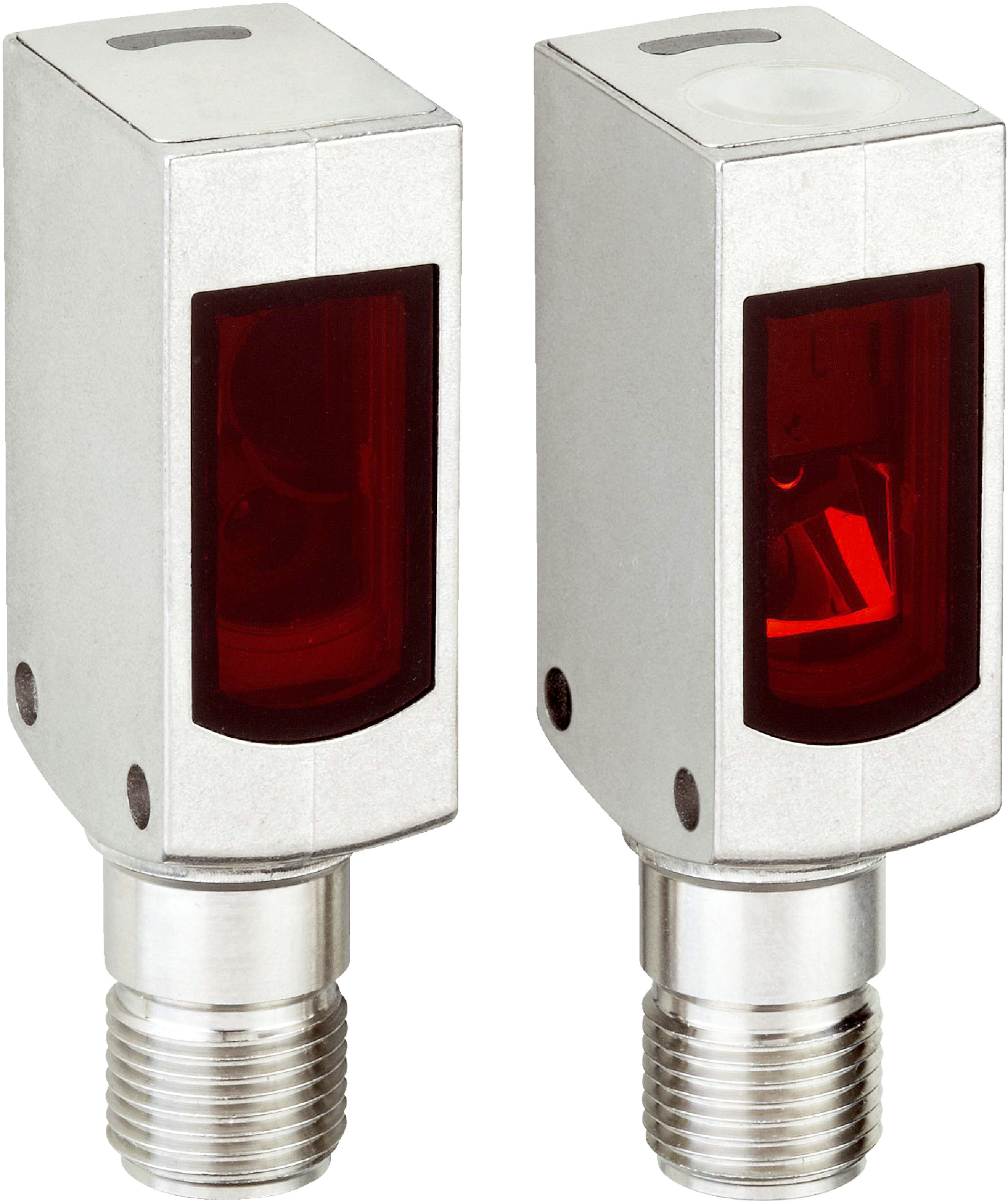

Through-Beam Photoelectric Sensor WSE4SL-3P2237V | 50m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4SL-3P2237V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a robust washdown stainless steel housing. With a fast response time of ≤ 0.5 ms and high protection ratings, it's perfect for hygienic zones and object detection in manufacturing processes, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Laser, visible red light, wavelength 650 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Housing design: Washdown, slim stainless steel V4A (1.4404, 316L)
- Connection: Male connector M8, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 55.4mm x 22.2mm x 15.3mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating IP66, IP67, IP68, IP69K
- Fast response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Complementary output function with PNP digital output
- Robust metal housing with plastic PMMA front screen
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of small objects in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption of 30 mA supports energy efficiency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WSE4SL-3P2237V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
