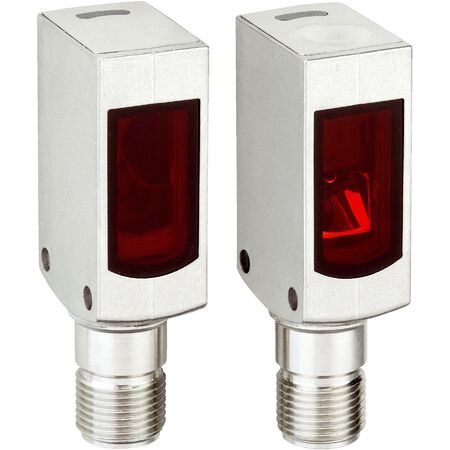

Through-Beam Photoelectric Sensor WSE4SL-3P1137V | 50m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WSE4SL-3P1137V Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a visible red laser light source at 650 nm. With a robust stainless steel V4A housing and high protection ratings, it's perfect for hygienic and washdown environments, ensuring reliable object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 50 m
- Light source: Laser, visible red light, 650 nm wavelength
- Light spot size: Ø 1 mm at 500 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable: 4-wire, 2 m length, PVC
- Mounting hole: M3
- Dimensions (H x L x W): 55.4mm x 22.2mm x 15.3mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 50 m
- Visible red laser light source with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Complementary PNP digital output with light/dark switching mode
- Robust metal housing with plastic PMMA front screen and PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of small objects in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient laser technology minimizes power consumption
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WSE4SL-3P1137V Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
