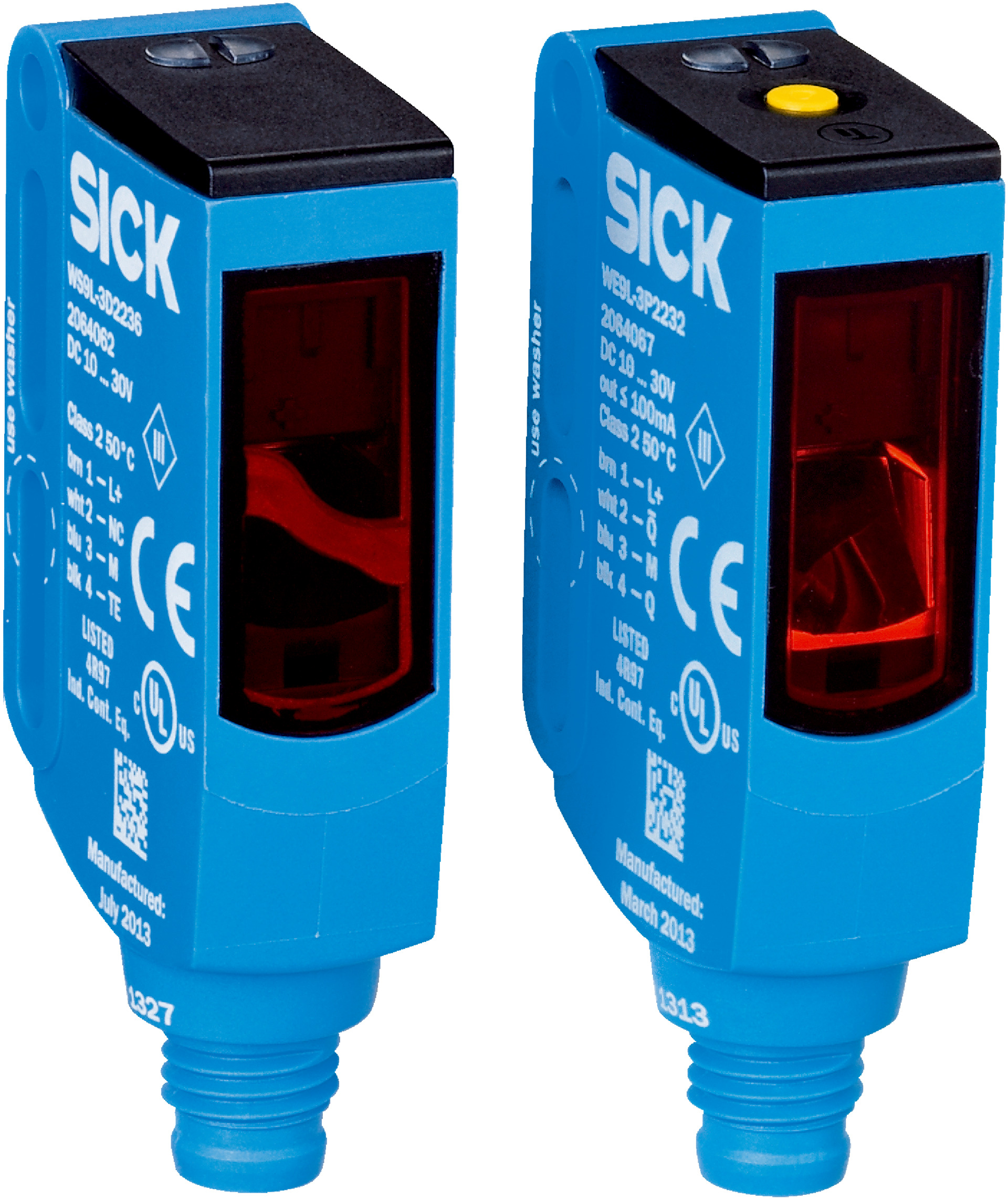

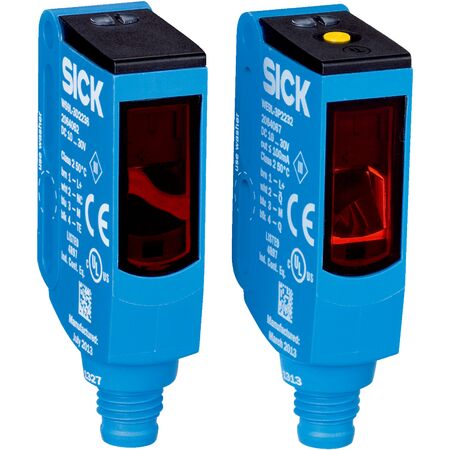

Through-Beam Photoelectric Sensor WSE9L-3N2237 | 50m Sensing Range | IP66, IP67, IP69K Rated | by SICK
The WSE9L-3N2237 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and robust IP66, IP67, and IP69K ratings for protection against dust and water. With a high switching frequency of 1,000 Hz and a complementary NPN output, this sensor is perfect for precise object detection in manufacturing lines and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Storage temperature: -30 °C to +70 °C
- Laser wavelength: 650 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with M3 mounting hole
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -30 °C to +55 °C (extended)
- Complementary NPN output with light/dark switching mode
- Plastic VISTAL® housing and PMMA optics material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in production processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP69K rated housing reduces waste by extending product life
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK WSE9L-3N2237 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
