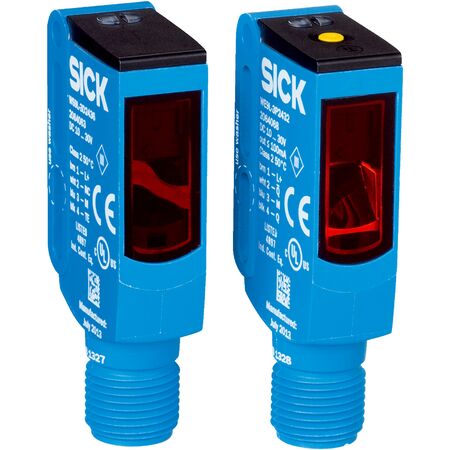

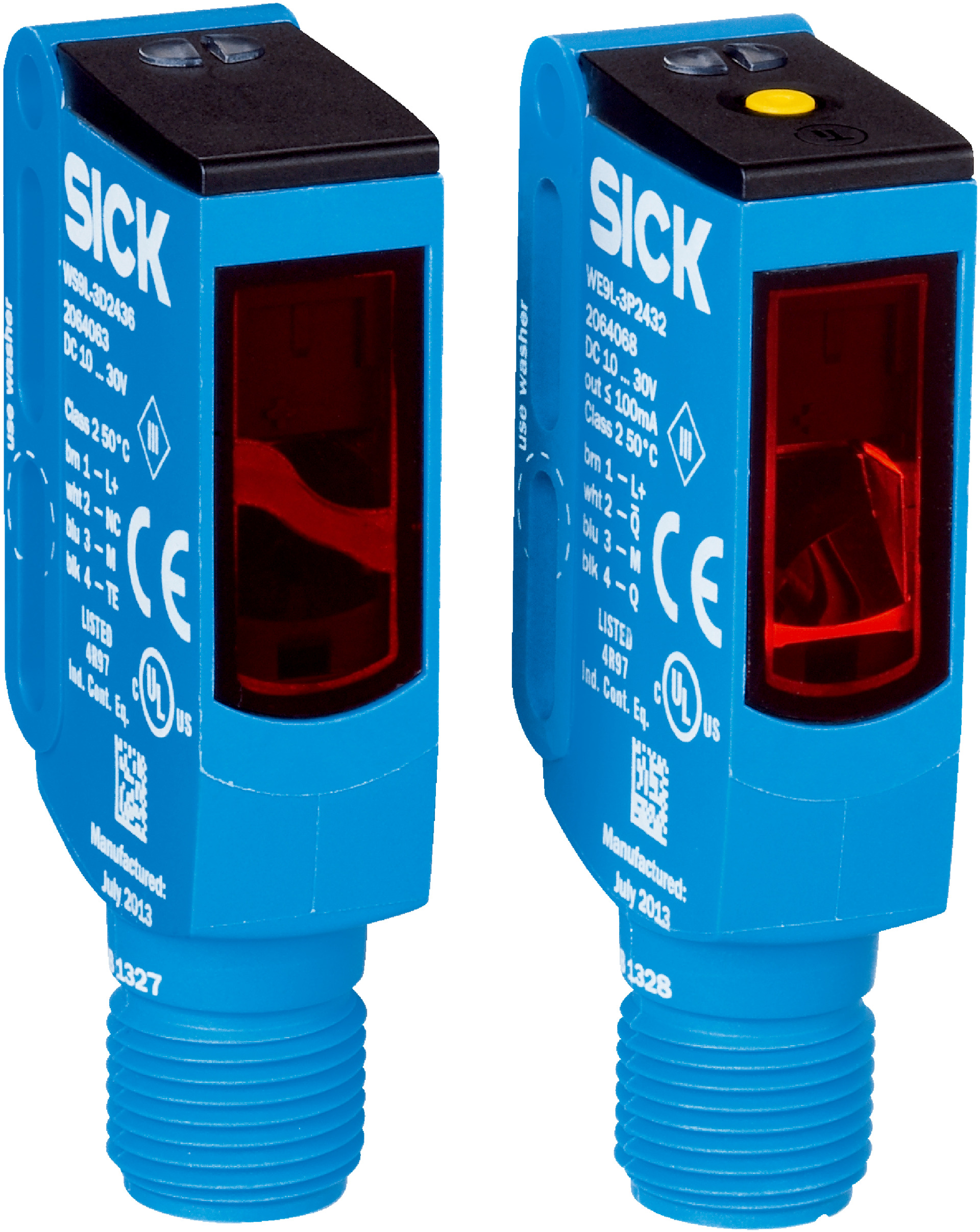

Through-Beam Photoelectric Sensor WSE9L-3P2437 | 50m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The WSE9L-3P2437 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a fast response time of ≤ 0.5 ms. With robust IP66/IP67/IP69K protection, it's perfect for small object detection and safety monitoring in manufacturing lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10°C to +50°C (standard), -30°C to +55°C (extended)
- Storage temperature: -30°C to +70°C
- Laser wavelength: 650 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 meters, max 60 meters
- Rectangular housing design with M3 mounting hole
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -30°C to +55°C (extended)
- Complementary PNP output with light/dark switching mode
- Laser class 1 compliant with IEC 60825-1 standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in production processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K housing minimizes waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9L-3P2437 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
