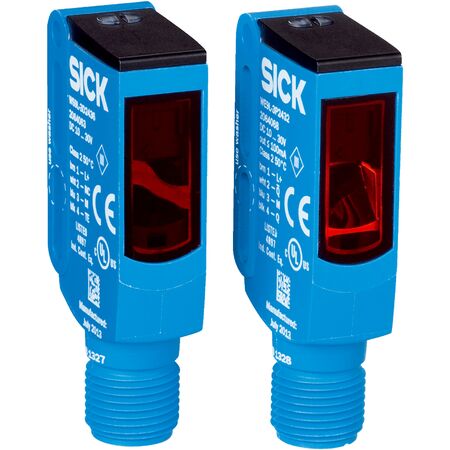

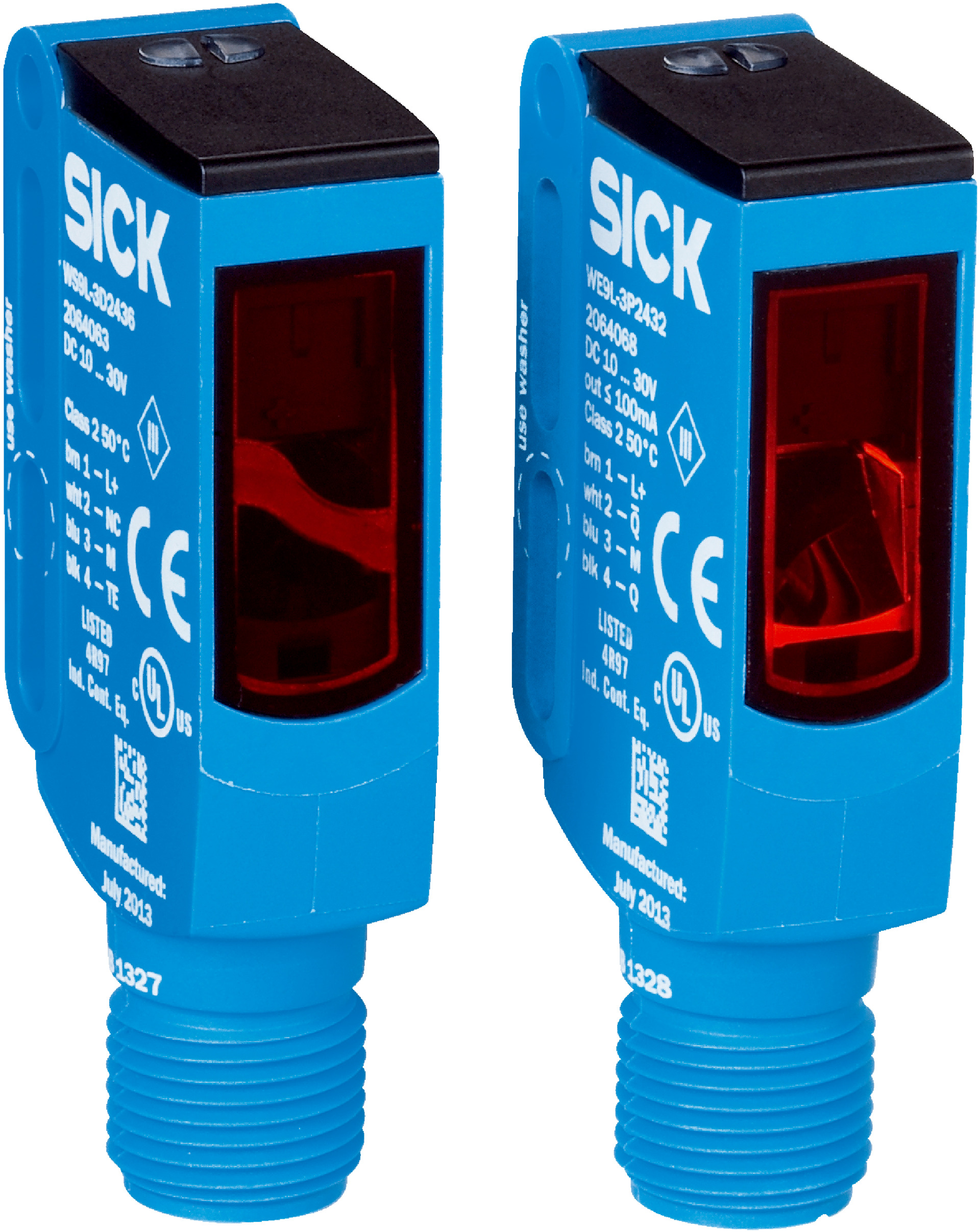

Through-Beam Photoelectric Sensor WSE9LC-3P2436A00 | 50m Sensing Range | IP66, IP67, IP69K Rated | by SICK
The WSE9LC-3P2436A00 Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 50 meters and a robust IP66, IP67, and IP69K rated housing, it ensures reliable performance in challenging environments. Ideal for material handling, quality control, and factory automation, this sensor features a visible red laser light and fast response time, making it perfect for detecting small objects with accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Visible red laser, wavelength 650 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C (extended)
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 meters, maximum 60 meters
- Rectangular housing design with M3 mounting hole
- Laser class 1 compliant with IEC 60825-1 standards
- IO-Link adjustable settings for flexible operation
- High switching frequency up to 1000 Hz with fast response time
- Robust plastic VISTAL® housing with IP66, IP67, and IP69K protection
- Operating temperature range from -30°C to +55°C extended
- Male M12 4-pin connector for easy integration
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Material handling and packaging systems
- Quality control and inspection processes
- Factory and process automation requiring precise object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE9LC-3P2436A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
