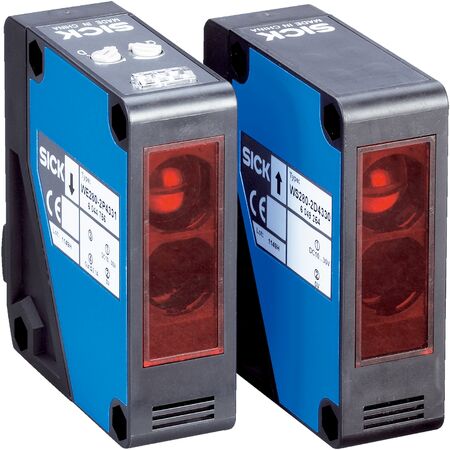

Through-Beam Photoelectric Sensor WSE280-2N4331 | 50m Sensing Range | IP66 & IP67 Rated | by SICK
The WSE280-2N4331 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 50 meters with visible red light. With a robust ABS housing and IP66/IP67 protection ratings, it ensures reliable performance in harsh environments. Ideal for object detection and safety monitoring, this sensor features a fast response time of ≤ 0.5 ms and selectable light/dark switching mode for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Type of light: Visible red light
- Light source: LED
- Light spot size at 20 m: Ø 0.6 m
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 20 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable gland
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 50 meters, maximum 60 meters
- Rectangular housing design with LED light source
- Selectable light/dark switching mode via rotary switch
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP66 and IP67 protection ratings
- Includes mounting bracket BEF-W280
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA per sender and receiver reduces energy usage
- Durable housing materials extend product life and reduce waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE280-2N4331 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
