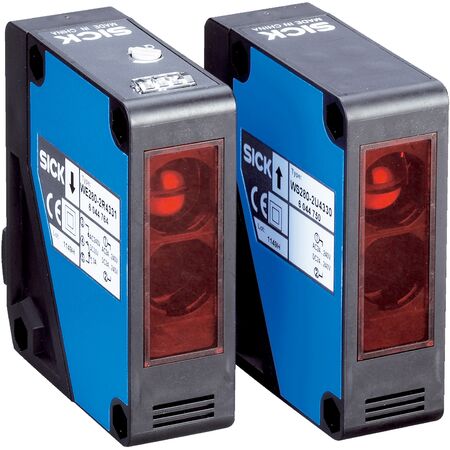

Through-beam Photoelectric Sensor WSE280-2H1531 | 50m Sensing Range | IP66 & IP67 Rated | by SICK
The WSE280-2H1531 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a robust IP66/IP67 enclosure rating. With a high switching frequency of 33 Hz and a quick response time of ≤ 15 ms, it's perfect for safety monitoring and object detection in manufacturing processes. Built to withstand harsh environments, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC to 240 V DC and 24 V AC to 240 V AC
- Power consumption: ≤ 3.5 VA (sender and receiver)
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 2 m length, PVC insulation
- Circuit protection: A and C type
- Overvoltage category: 2
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient temperature: Operating -25 °C to +55 °C, Storage -40 °C to +70 °C
- MTTFD: 441 years
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with LED light source
- Potentiometer adjustment for sensitivity
- Relay electrically isolated switching output with change-over contacts
- High switching frequency of 33 Hz and response time ≤ 15 ms
- Protection class II with IP66 and IP67 enclosure rating
- Robust plastic ABS housing and PMMA optics
- Wide ambient operating temperature range from -25 °C to +55 °C
- Includes mounting bracket BEF-W280
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 3.5 VA for sender and receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE280-2H1531 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
