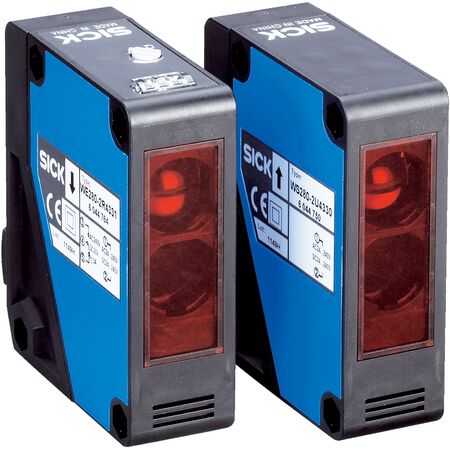

Through-Beam Photoelectric Sensor WSE280-2H1631 | 50m Sensing Range | IP66/IP67 Rated | by SICK
The WSE280-2H1631 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a robust IP66/IP67 rating for harsh environments. With a visible red light source and high switching frequency of 33 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor is built to withstand ambient temperatures from -25°C to +55°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: LED visible red light
- Light spot size: Ø 0.6 m at 20 m distance
- Adjustment: Potentiometer
- Supply voltage: 24 V DC/AC to 240 V DC/AC
- Power consumption: ≤3.5 VA sender and receiver
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤15 ms
- Switching frequency: 33 Hz
- Connection: 5-wire cable, 5 m, PVC
- Protection class: II
- Overvoltage category: 2
- Enclosure rating: IP66, IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with LED light source
- Relay output with change-over contacts
- High switching frequency of 33 Hz
- Protection rating IP66 and IP67 for harsh environments
- Wide supply voltage range from 24 V DC/AC to 240 V DC/AC
- Robust plastic ABS housing and PMMA optics
- Ambient operating temperature from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤3.5 VA for sender and receiver
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE280-2H1631 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
