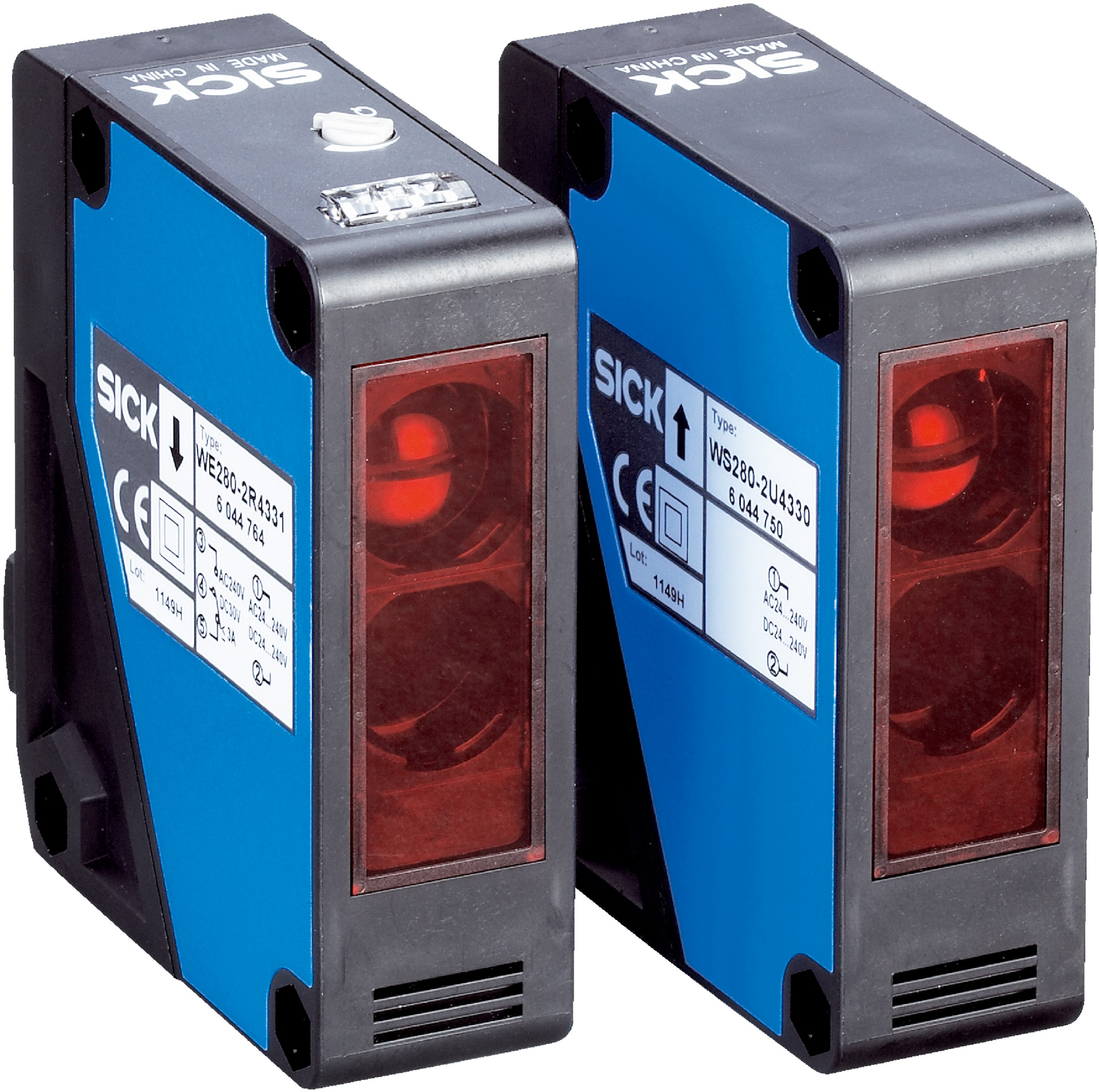

Through-Beam Photoelectric Sensor WSE280-2R4331 | 50m Sensing Range | IP66 & IP67 Rated | by SICK
The WSE280-2R4331 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 50 meters with a high switching frequency of 33 Hz. Its robust IP66 and IP67 enclosure ratings ensure reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC to 240 V DC and 24 V AC to 240 V AC
- Power consumption sender and receiver: ≤ 3.5 VA each
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection type: Cable gland
- Circuit protection: A and C types
- Overvoltage category: 3
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP66 and IP67
- Usage category: AC-15, DC-13 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Safety parameters: MTTFD 446 years, DCavg 0%
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 50 m, max 60 m
- Rectangular housing design with LED light source
- Potentiometer adjustment for sensitivity
- Relay switching output with change-over contacts
- High switching frequency of 33 Hz
- Protection class II with IP66 and IP67 enclosure rating
- Wide operating temperature range from -25°C to +55°C
- Mounting bracket BEF-W280 included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤3.5 VA for sender and receiver
- Durable ABS plastic housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE280-2R4331 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
