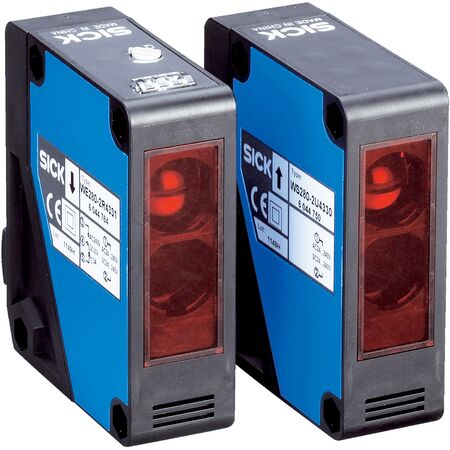

Through-beam Photoelectric Sensor WSE280-2R1531 | 50m Sensing Range | IP66 & IP67 Rated | by SICK
The WSE280-2R1531 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a visible red LED light source. With a robust IP66 and IP67 rating, it ensures reliable performance in harsh environments, making it ideal for safety and monitoring in manufacturing processes and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Sensing range typical: 0 m to 50 m
- Light source: Visible red LED
- Light spot size at 20 m: Ø 0.6 m
- Supply voltage: 24 V DC to 240 V DC, 24 V AC to 240 V AC
- Power consumption sender and receiver: ≤ 3.5 VA each
- Switching output: Relay, electrically isolated
- Output function: Change-over contacts
- Switching current: 3 A at 240 V AC or 30 V DC
- Response time: ≤ 15 ms
- Switching frequency: 33 Hz
- Connection type: 5-wire cable, 2 m length, PVC insulation
- Protection class: II
- Overvoltage category: 3
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Usage category: AC-15, DC-13 according to EN 60947-1
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.3 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red LED light source
- Sensing range up to 50 meters
- Rectangular housing design with light emission
- Potentiometer adjustment for sensitivity
- Relay output with change-over contacts
- High switching frequency of 33 Hz
- Protection rating IP66 and IP67 for harsh environments
- Wide supply voltage range from 24 V DC/AC to 240 V DC/AC
- Mounting bracket included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable housing reduces waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE280-2R1531 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
