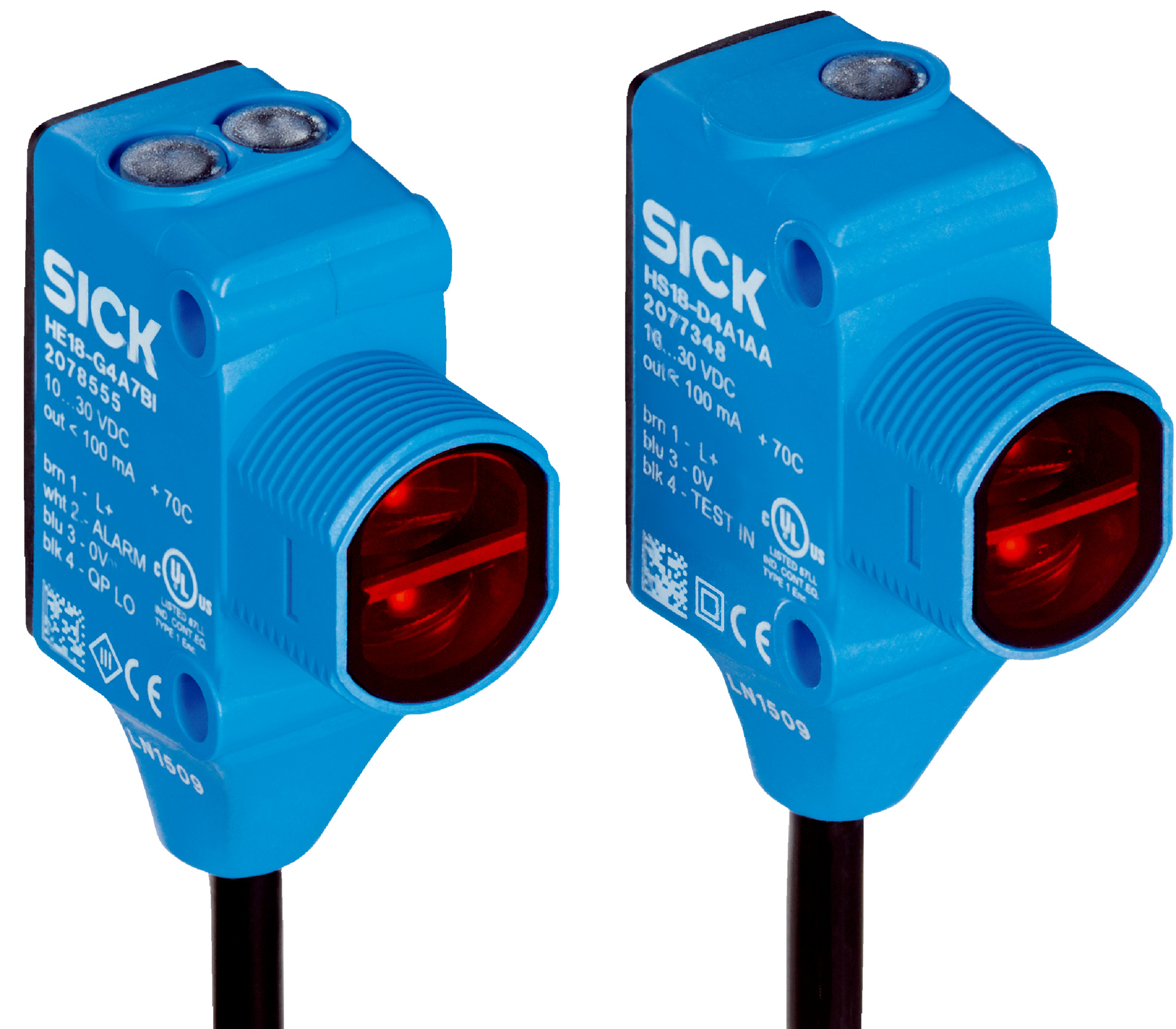

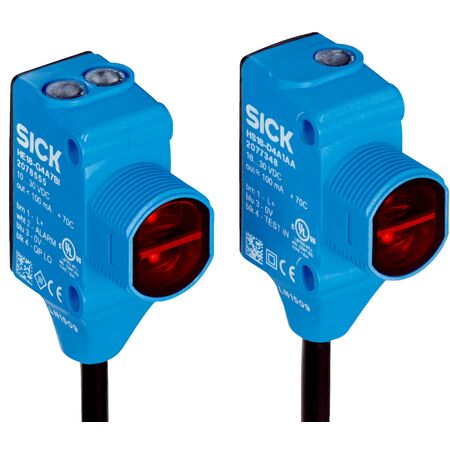

Through-Beam Photoelectric Sensor HSE18L-F4B5BAA00 | 50m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18L-F4B5BAA00 through-beam photoelectric sensor is designed for precise object detection in industrial automation. With a sensing range of up to 50 meters and a visible red laser light, it ensures reliable performance even in harsh environments. Its hybrid housing design and IP67/IP69K rating provide excellent dust and water protection, making it ideal for manufacturing processes and other demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Housing design: Hybrid with M18 thread diameter
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Visible red laser, wavelength 655 nm, Laser class 1
- Switching output: Push-pull PNP/NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC: EN 60947-5-2, industrial radio safety class A
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy alignment
- Push-pull PNP/NPN complementary switching outputs
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- IP67 and IP69K rated for dust and water protection
- Cable with M12 male connector, 4-pin, 150 mm
- Operating temperature range from -30 °C to +55 °C
- EMC compliant to EN 60947-5-2 industrial radio safety class A
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Use in harsh environments requiring IP67/IP69K protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18L-F4B5BAA00 through-beam photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
