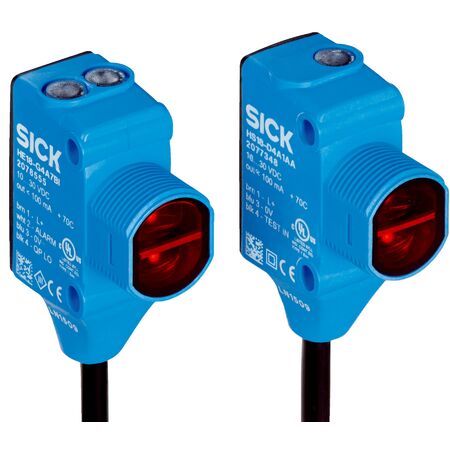

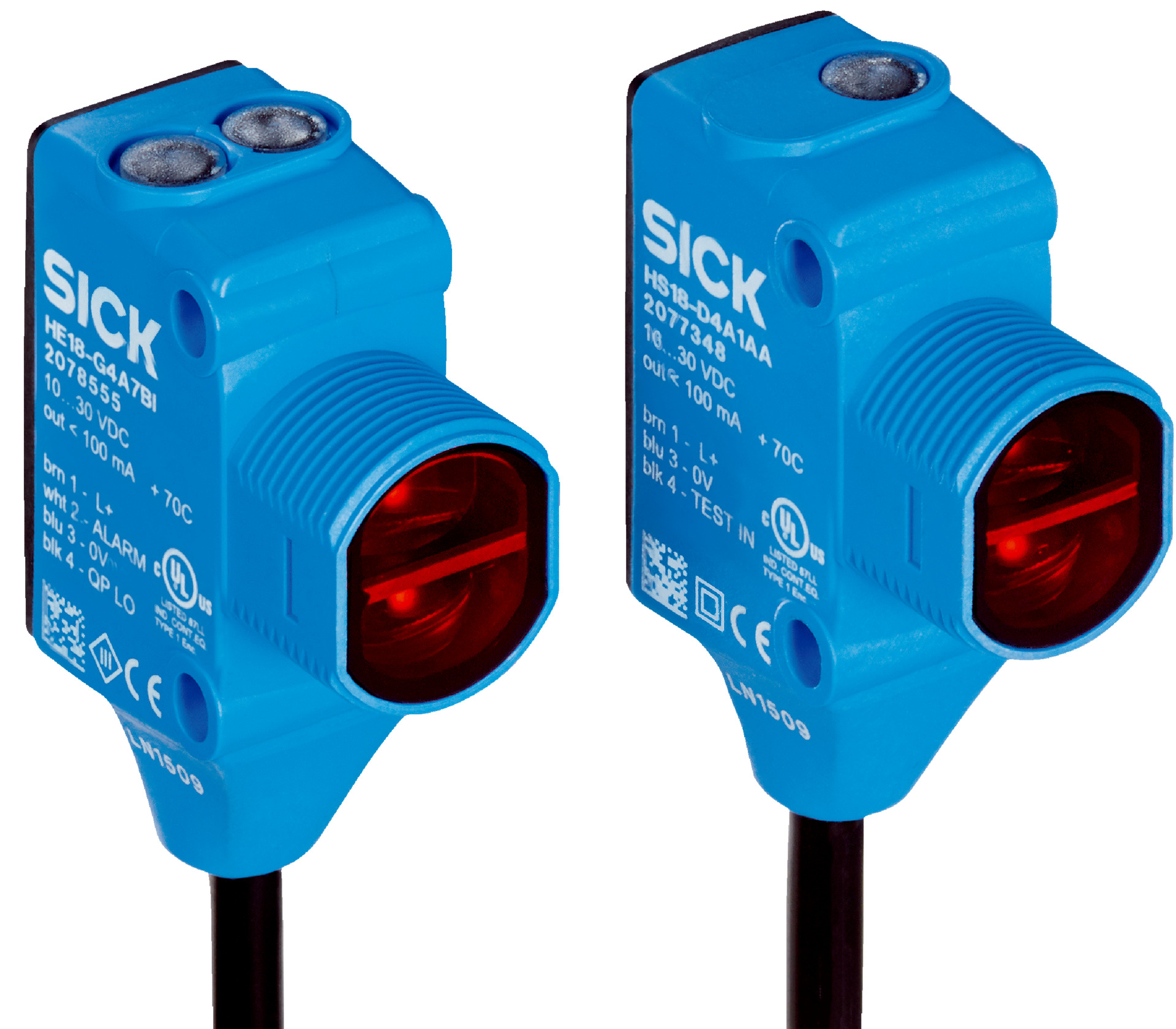

Through-Beam Photoelectric Sensor HSE18L-N1G5BA | 50m Sensing Range | IP67/IP69K Protection | by SICK
The HSE18L-N1G5BA Through-beam Photoelectric Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 50 meters and a robust IP67/IP69K rated housing. With a fast response time of ≤ 0.5 ms and a visible red laser light, this sensor is perfect for small object detection in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Visible red laser, wavelength 655 nm, Laser class 1
- Housing design: Hybrid with M18 thread diameter
- Switching output: Complementary NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable open end, 2 m PVC cable
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 46mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 m, max 60 m
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- Light/dark switching with complementary NPN outputs
- Fast response time ≤ 0.5 ms and switching frequency 1000 Hz
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Operating temperature range from -30 °C to +55 °C
- Cable open end connection with 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Use in harsh environments requiring IP67/IP69K protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HSE18L-N1G5BA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
