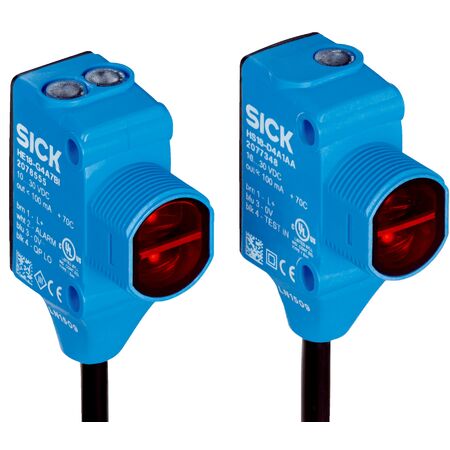

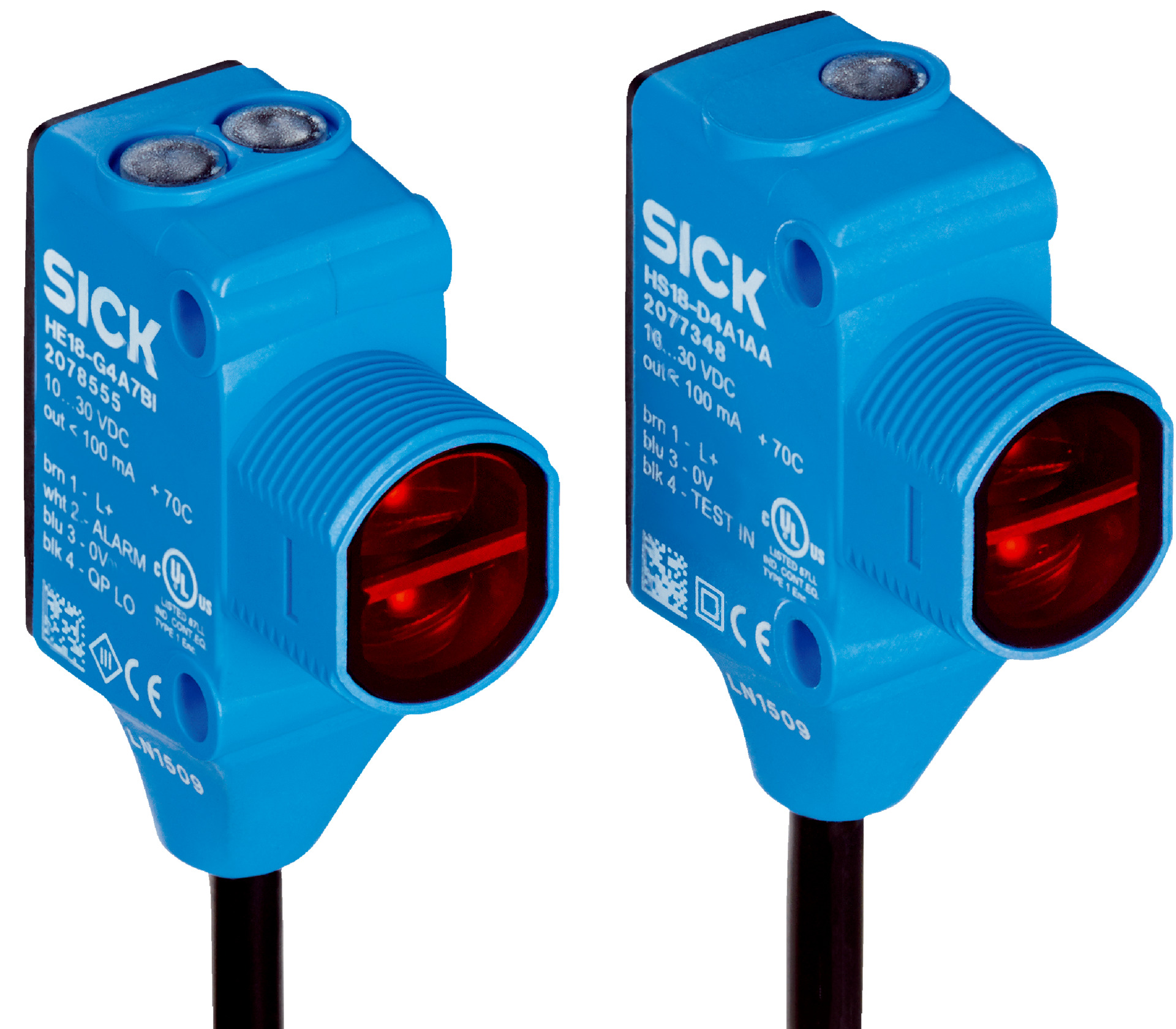

Through-Beam Photoelectric Sensor HSE18L-P1G5AA | 50m Sensing Range | IP67 & IP69K Rated | by SICK
The HSE18L-P1G5AA Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a fast response time of ≤ 0.5 ms. With robust IP67 and IP69K ratings, this sensor is perfect for precise object detection in manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Visible red laser, wavelength 655 nm, Laser class 1
- Switching output: PNP complementary outputs with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: ≤ 20 mA
- Connection type: Cable open end, 2 m, plastic PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 45.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 meters, max 60 meters
- Hybrid housing design with M18 thread diameter
- Light/dark switching mode with complementary PNP outputs
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic VISTAL® housing with IP67 and IP69K protection ratings
- Operating temperature range from -30°C to +55°C
- EMC compliant with EN 60947-5-2 for industrial radio safety
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable housing materials reduce waste and extend product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HSE18L-P1G5AA Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
