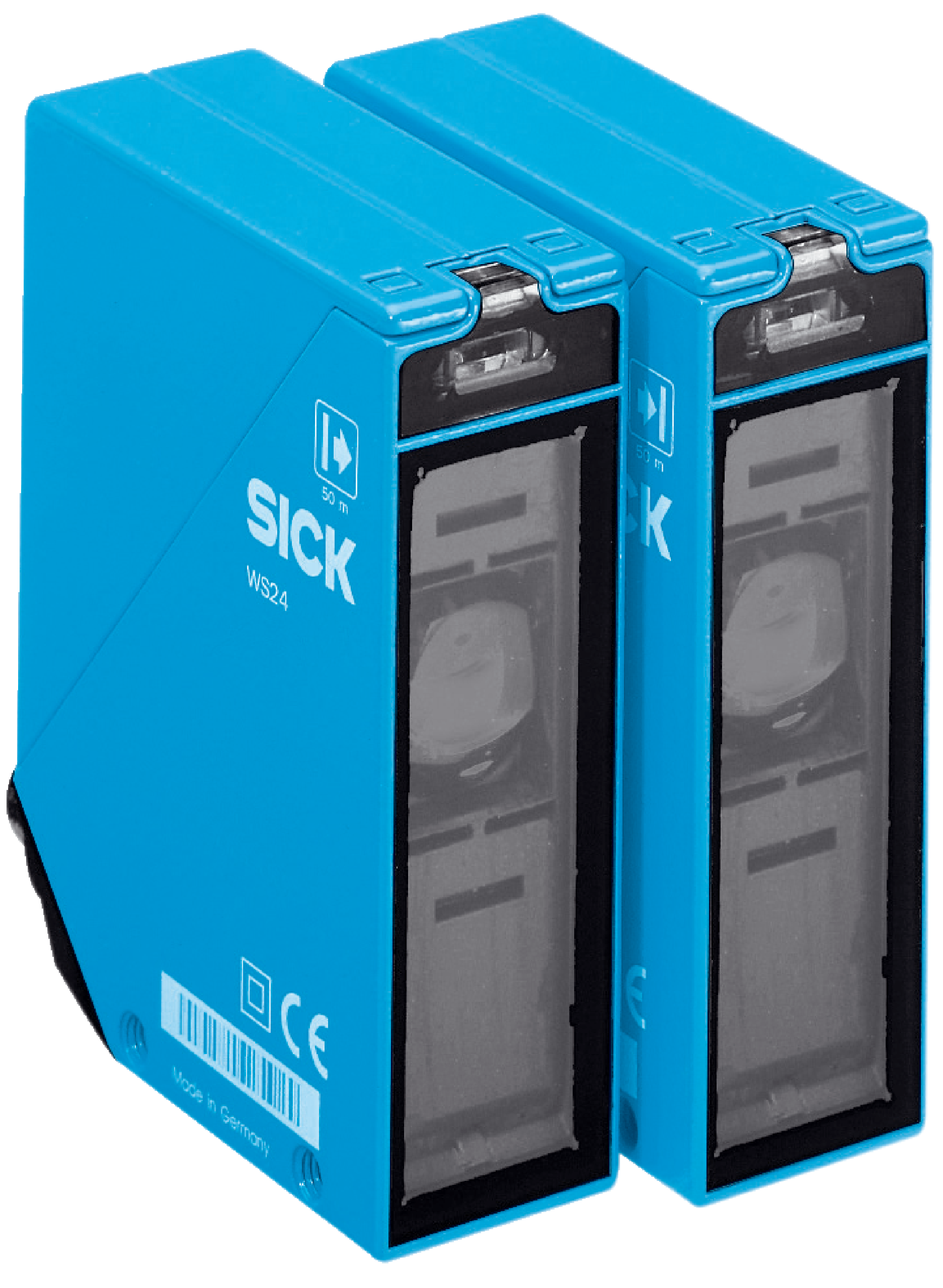

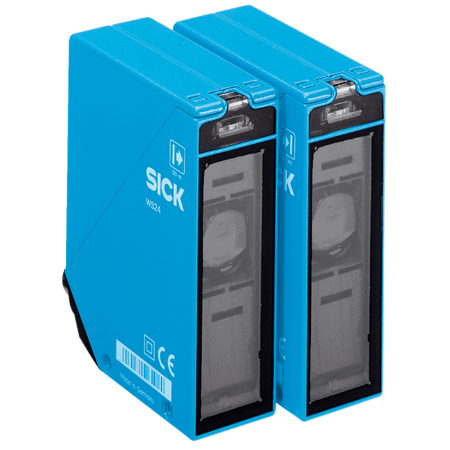

Through-Beam Photoelectric Sensor WS/WE24-2R240 | 50m Sensing Range | IP67 Rated | by SICK
The WS/WE24-2R240 Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 m and a durable IP67-rated enclosure. With a visible red LED light source and relay output, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor operates efficiently in temperatures from -40 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WSWE24-2R240
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Light source: Visible red LED
- Light spot size at 50 m: Ø 700 mm
- Angle of dispersion: Approx. 1°
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 3 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching mode: Light/dark switching selectable
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Front screen heating: Permanent
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.66 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 50 m, max 60 m
- Rectangular metal zinc diecast housing with plastic PMMA optics
- Front screen heating for permanent use with plastic front screen
- Relay output with change-over contacts and selectable light/dark switching
- Adjustable delay time from 0.5 s to 10 s
- Protection class II and enclosure rating IP67
- Wide ambient operating temperature range from -40 °C to +60 °C
- Switching frequency up to 10 Hz and response time ≤ 10 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption under 3 VA reduces energy usage
- Durable metal housing extends product life and reduces waste
- Front screen heating prevents sensor malfunction in cold environments, reducing downtime and resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE24-2R240 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
