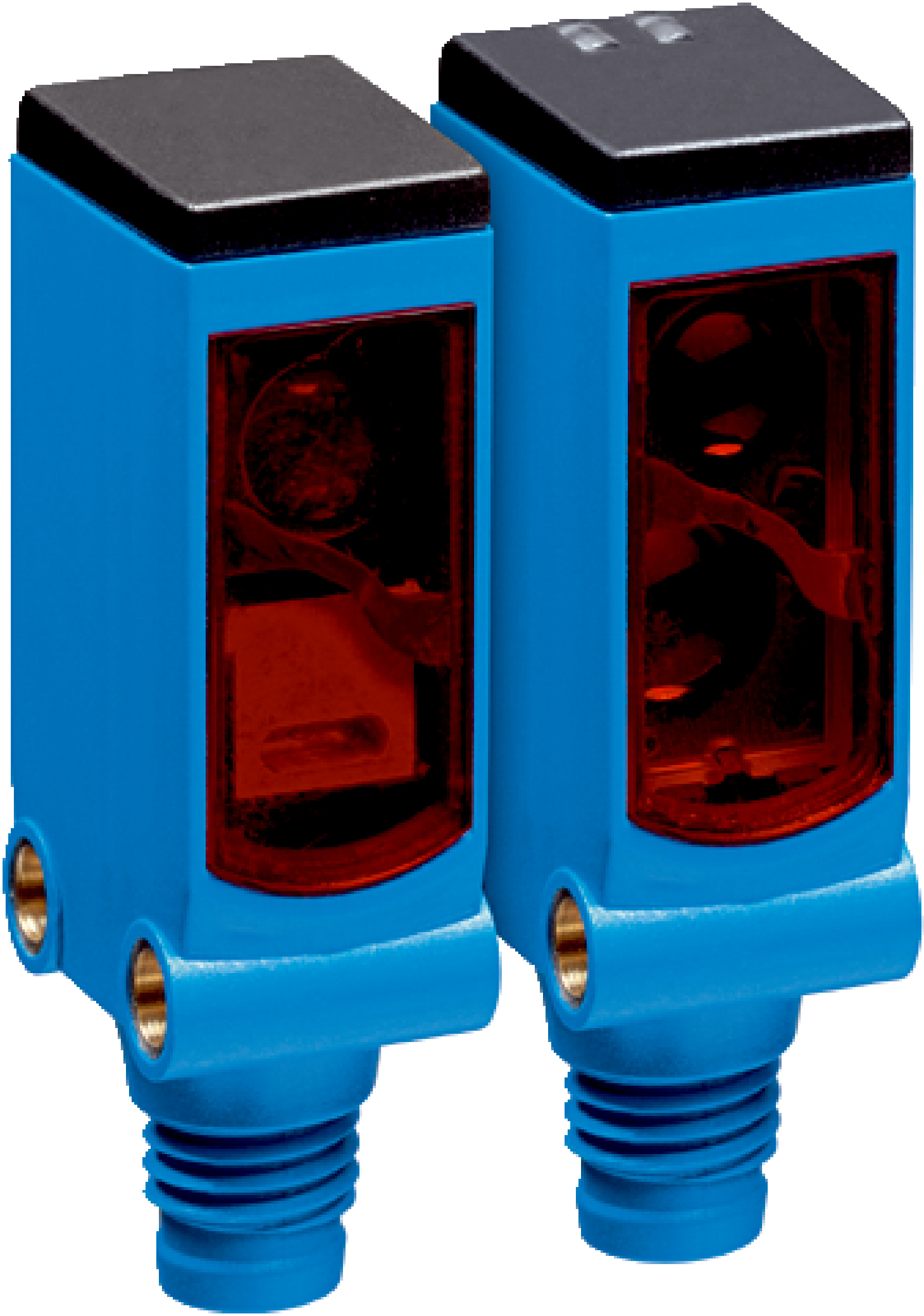

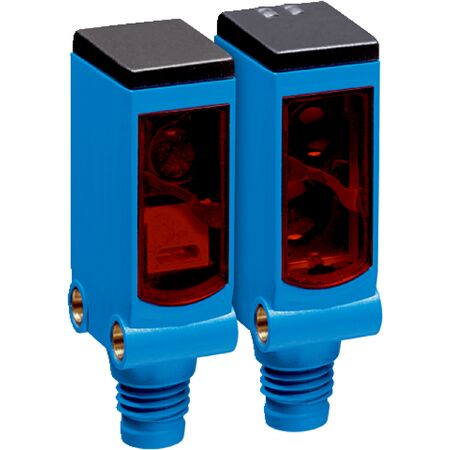

Through-Beam Photoelectric Sensor WSE4SLC-3P2236A70 | 50m Sensing Range | Laser Class 1 | IP66/IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor WSE4SLC-3P2236A70 is designed for industrial automation, featuring a sensing range of up to 50 meters and a visible red laser light source at 650 nm. With a fast response time of ≤ 0.5 ms and IP66/IP67 protection ratings, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 50 m
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, complementary
- Switching mode: Light/dark switching
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Connection: Male M8, 4-pin connector
- Housing material: Plastic, Novodur
- Front screen material: Plastic, PMMA
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 50 m
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety compliant
- IO-Link communication interface with 38.4 kBaud data transmission
- Fast response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Slim plastic Novodur housing with IP66 and IP67 protection ratings
- Operating temperature range from -10 °C to +50 °C (extended -30 °C to +55 °C)
- Complementary PNP digital output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP66/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WSE4SLC-3P2236A70 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
