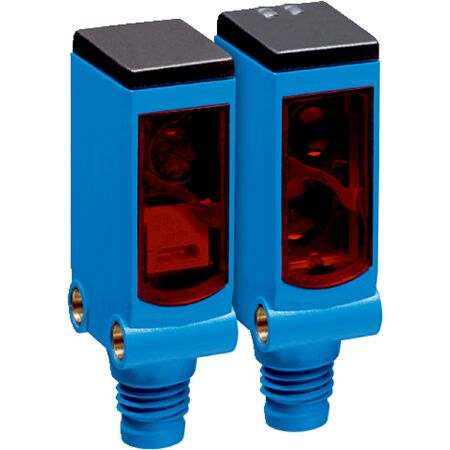

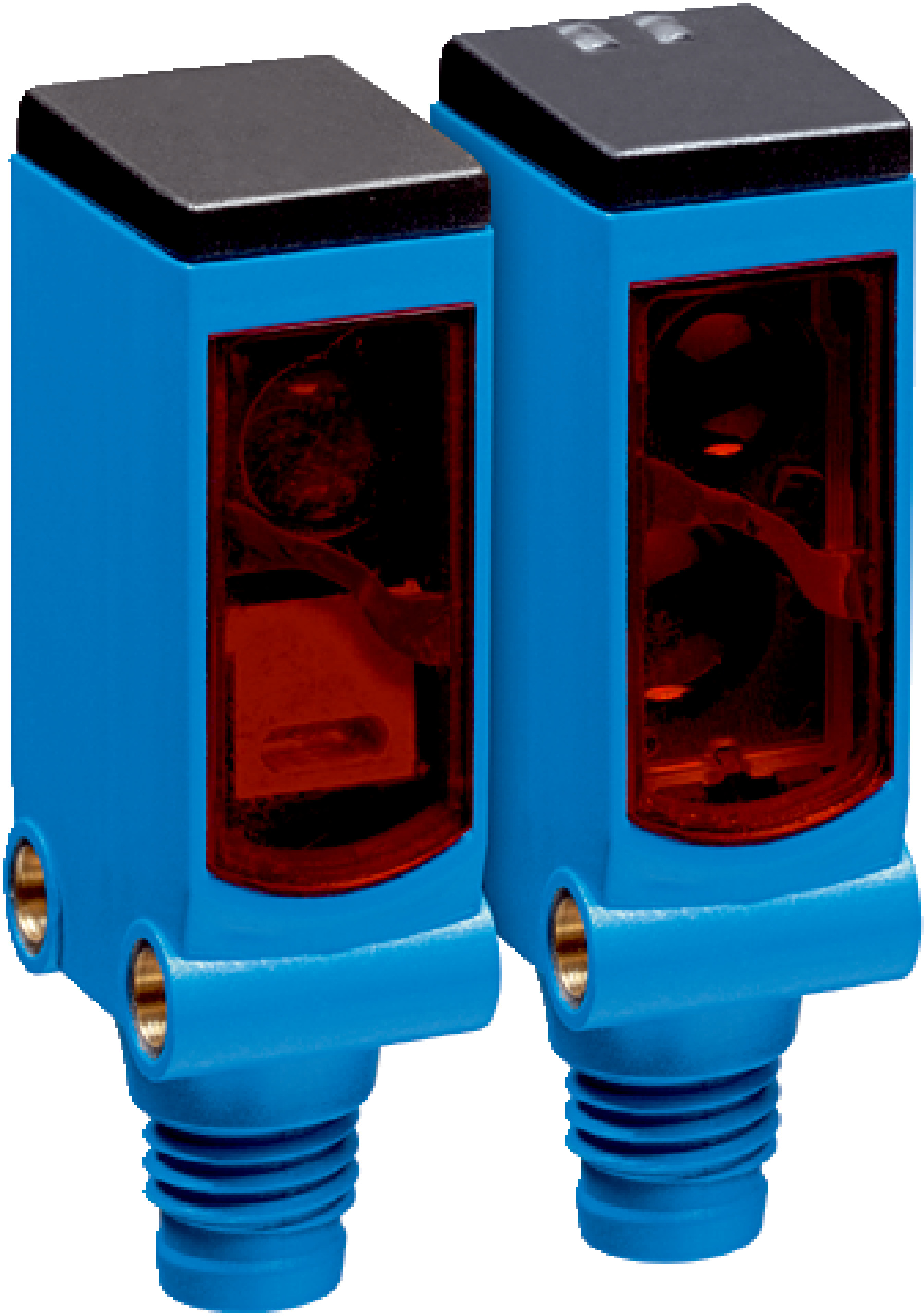

Through-Beam Photoelectric Sensor | 50m Sensing Range | Visible Red Laser Light | IP66 & IP67 Rated | by SICK
The Through-Beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 50 meters and a visible red laser light source at 650 nm. With a fast response time of ≤ 0.5 ms and IP66/IP67 protection, it's perfect for small object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor ensures optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 50 m
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Digital output: PNP, light/dark switching, max 100 mA output current
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -30 °C to +55 °C (extended)
- Connection: Cable with M8 male connector, 4-pin
- Housing material: Plastic, Novodur
- Front screen: Plastic, PMMA
- Cable material: Plastic, PVC
- Communication: IO-Link, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 50 m
- Visible red laser light source with 650 nm wavelength
- Slim plastic Novodur housing with IP66 and IP67 protection
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface with 2.3 ms cycle time
- Complementary PNP digital output with light/dark switching mode
- Operating temperature range from -30 °C to +55 °C (extended)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor setup and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in production processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE4SLC-3P3236A00 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and small object detection applications.
