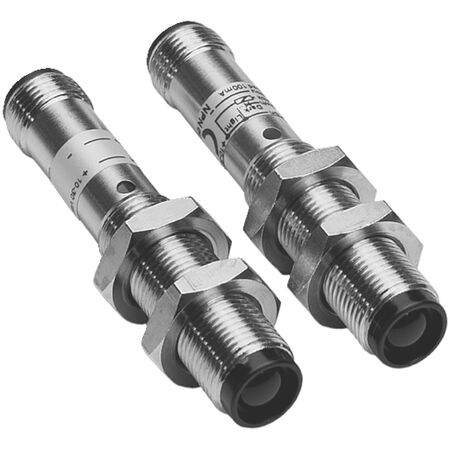

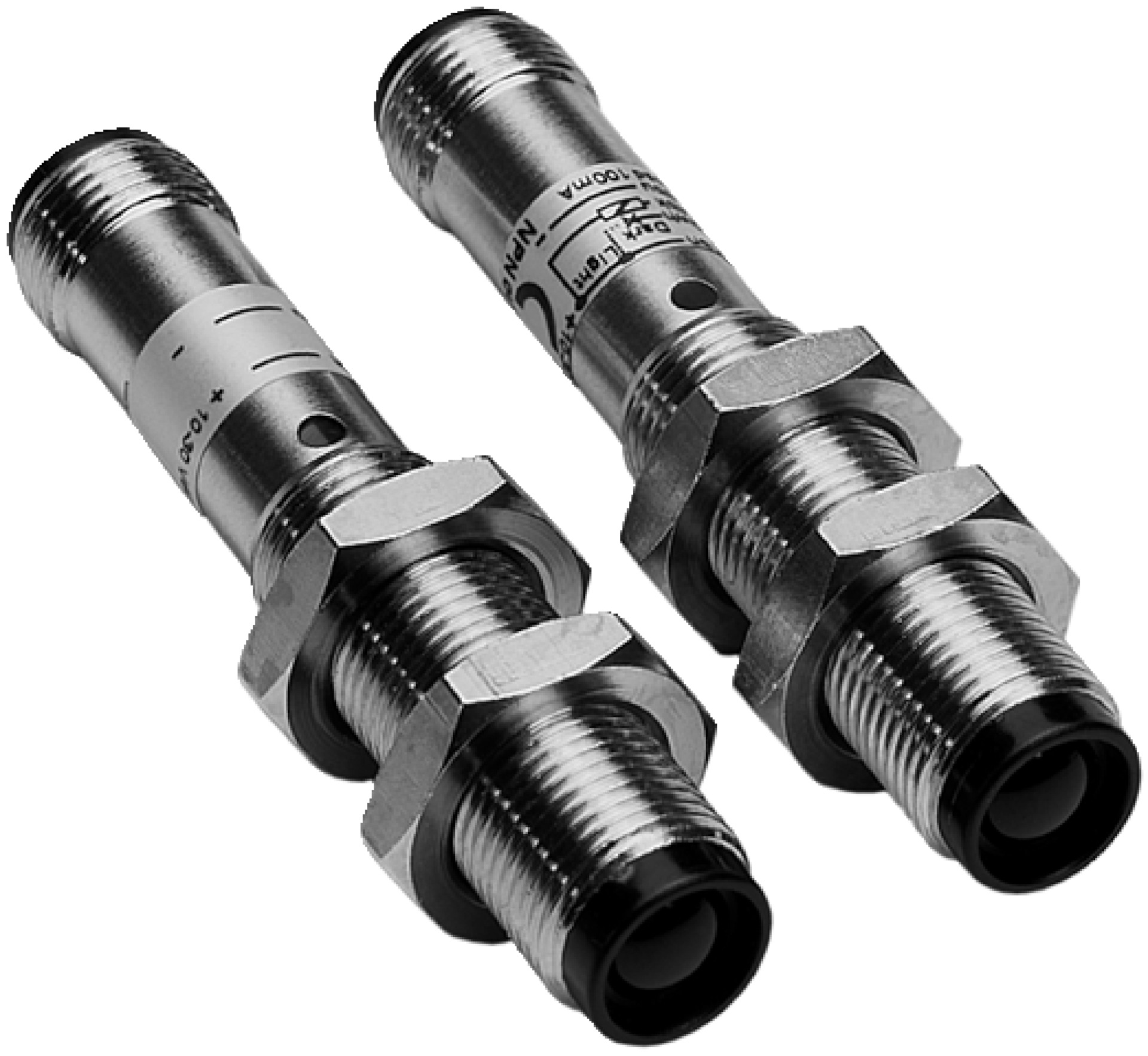

Through-beam Photoelectric Sensor VS/VE12-2P430 | 5m Sensing Range | IP67 Rated | Fast Response Time | by SICK
The Through-beam Photoelectric Sensor VS/VE12-2P430 is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of ≤ 2 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 5 m
- Focus angle: Approx. 1.4°
- Type of light: Infrared light, wavelength 880 nm
- Light spot size at 4 m: Ø 100 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +70°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 12mm x 66.3mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 5 meters
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- Male M12, 4-pin connector for easy installation
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VS/VE12-2P430 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
