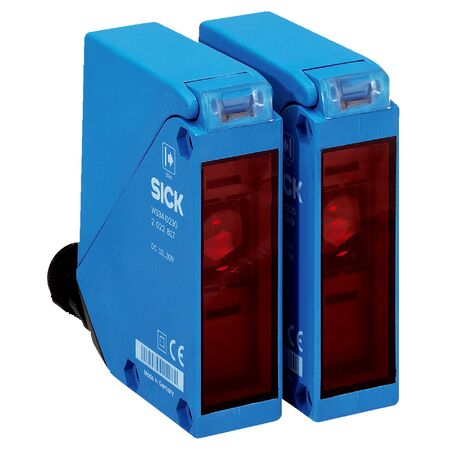

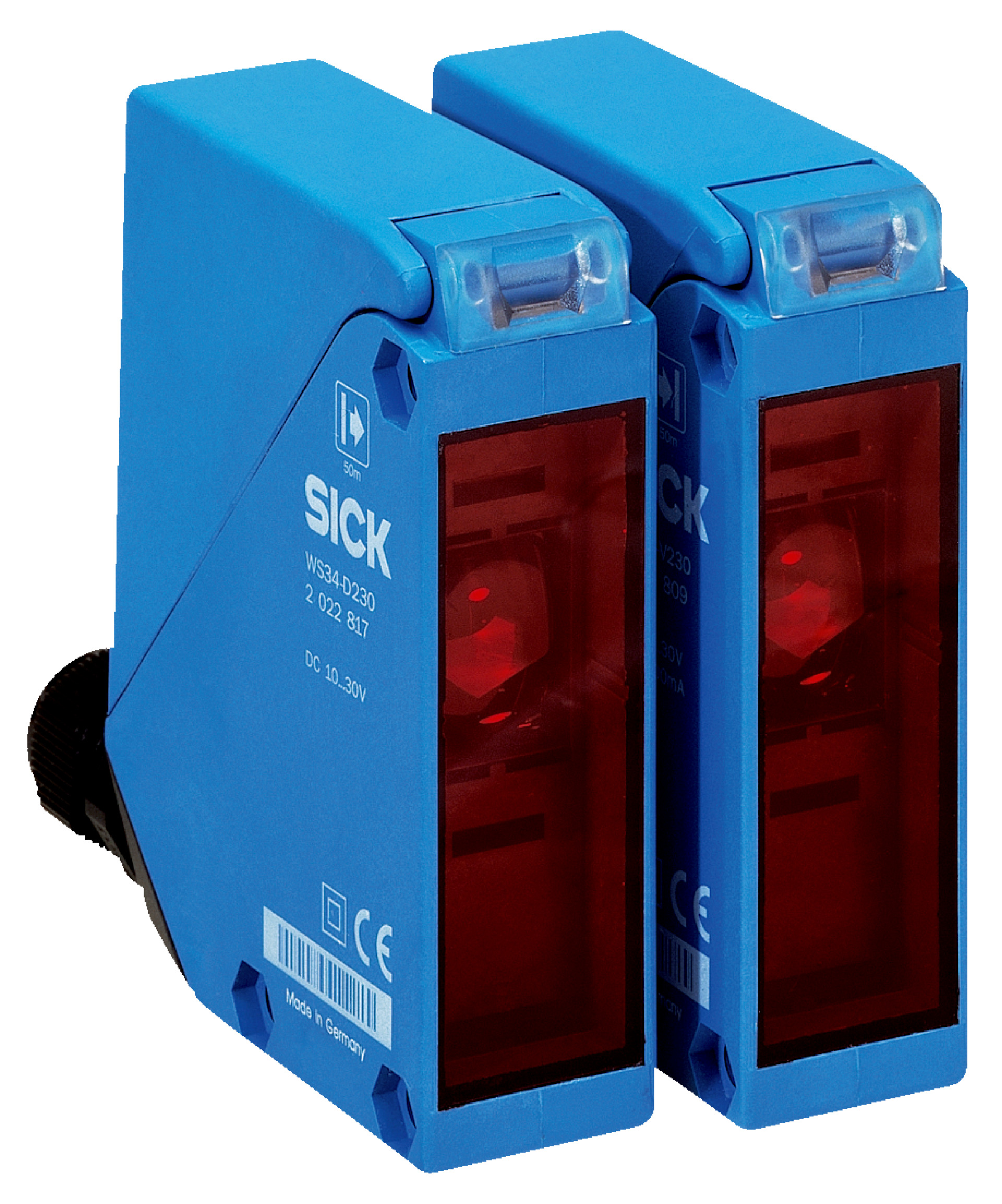

Through-Beam Photoelectric Sensor WS/WE34-V230 | 60m Sensing Range | IP67 Rated | by SICK
The WS/WE34-V230 Through-beam Photoelectric Sensor is designed for industrial automation, offering a remarkable sensing range of up to 60 meters with a visible red LED light source. With selectable light and dark switching modes, this sensor ensures reliable object detection and safety monitoring in manufacturing processes. Its robust IP67-rated ABS housing withstands harsh environments, making it ideal for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE34-V230 | 60m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1019253
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WS34 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Light source: Visible red LED, wavelength 660 nm
- Light spot size at 50 m: Ø 700 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 50 mA, receiver: 40 mA
- Switching output: NPN, PNP
- Switching modes: Light switching, Dark switching selectable
- Output current max.: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: –40 °C to +60 °C
- Housing material: Plastic, ABS
- Weight: 280 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 60 meters with approx. 1° focus and 1° angle of dispersion
- Selectable switching modes: light switching and dark switching
- NPN and PNP switching outputs with max output current ≤ 100 mA
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from –40 °C to +60 °C
- Circuit protection and safety class II compliant
- Terminal connection with M16 gland for secure wiring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE34-V230 Through-beam Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety monitoring applications.
