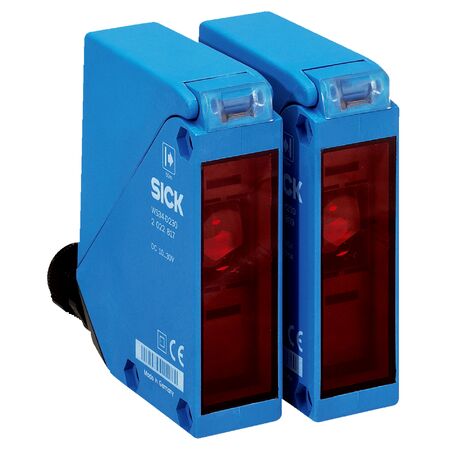

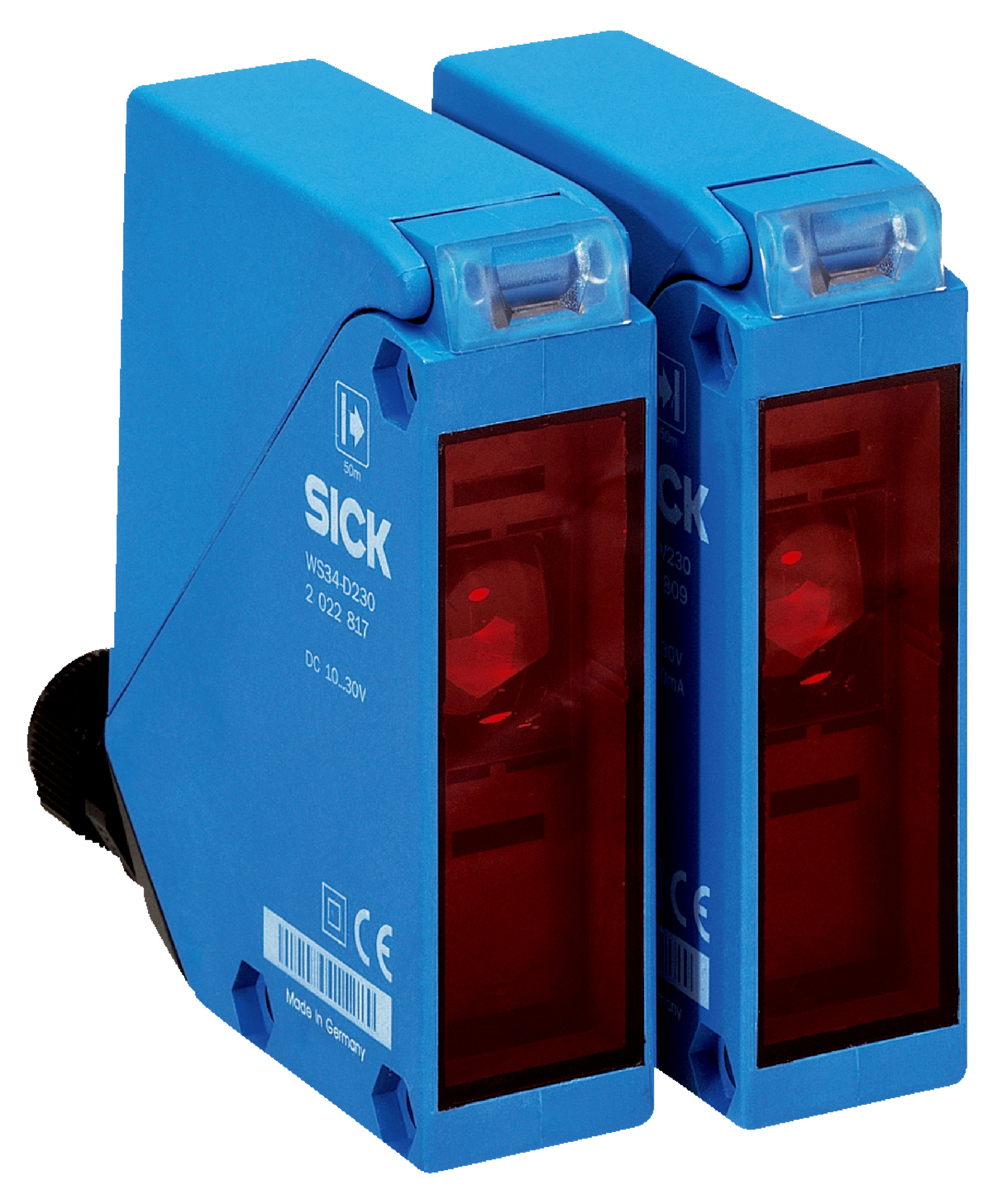

Through-Beam Photoelectric Sensor WS/WE34-V530 | 60m Sensing Range | IP67 Rated | by SICK
The WS/WE34-V530 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 60 meters and a visible red LED light source. With selectable light and dark switching modes, this robust sensor ensures reliable object detection and safety monitoring in manufacturing processes, making it ideal for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE34-V530 | 60m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1019256
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WS34 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Light source: Visible red LED, wavelength 660 nm
- Light spot size at 50 m: Ø 700 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 50 mA, receiver: 40 mA
- Switching output: NPN, PNP
- Switching modes: Light switching, Dark switching selectable
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Plug, M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Ambient operating temperature: –40 °C to +60 °C
- Housing material: Plastic, ABS
- Weight: 280 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 60 meters with approx. 1° focus and 1° angle of dispersion
- Selectable switching modes: light switching and dark switching
- NPN and PNP switching outputs with max output current ≤ 100 mA
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from –40 °C to +60 °C
- Plug connection type: M12, 5-pin
- Circuit protection and safety certifications including cULus and photobiological safety
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE34-V530 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
