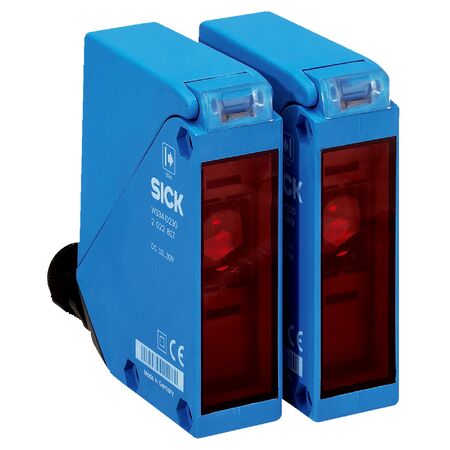

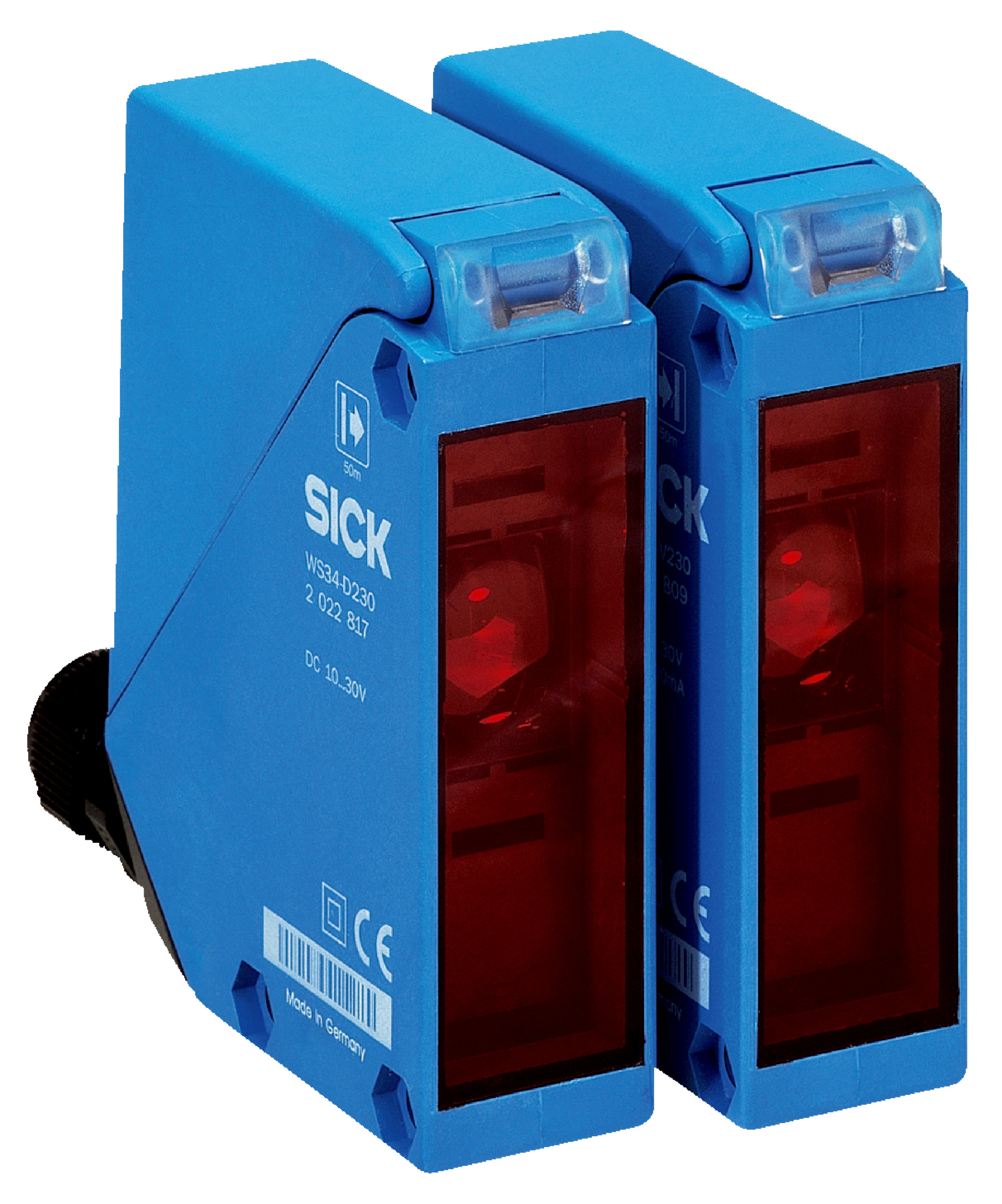

Through-Beam Photoelectric Sensor WS/WE34-R230 | 60m Sensing Range | IP67 Rated | by SICK
The WS/WE34-R230 Through-Beam Photoelectric Sensor is designed for industrial automation, offering a remarkable sensing range of up to 60 meters with a visible red LED light source. With a fast response time of ≤ 10 ms and robust IP67-rated housing, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Through-Beam Photoelectric Sensor WS/WE34-R230 | 60m Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1019257
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK WS34 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Light source: LED, visible red light at 660 nm wavelength
- Light spot size at 50 m: Ø 700 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.28 kg
Key Features
- Through-beam photoelectric sensor with visible red LED light source
- Sensing range up to 60 meters with approx. 1° focus and angle of dispersion
- Relay output with change-over contacts supporting light and dark switching modes
- Robust plastic ABS housing with IP67 enclosure rating for harsh environments
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
- Fast response time of ≤ 10 ms and switching frequency of 10 Hz
- Terminal connection with M16 gland and circuit protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of less than 2 VA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WS/WE34-R230 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
