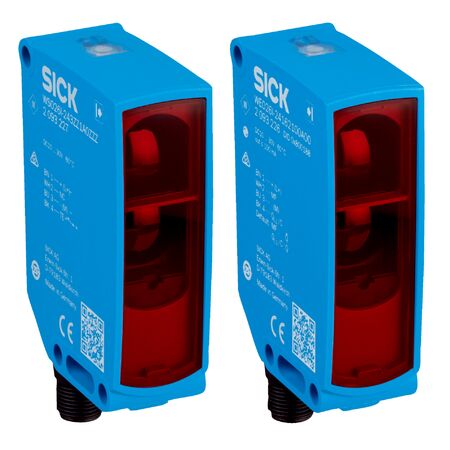

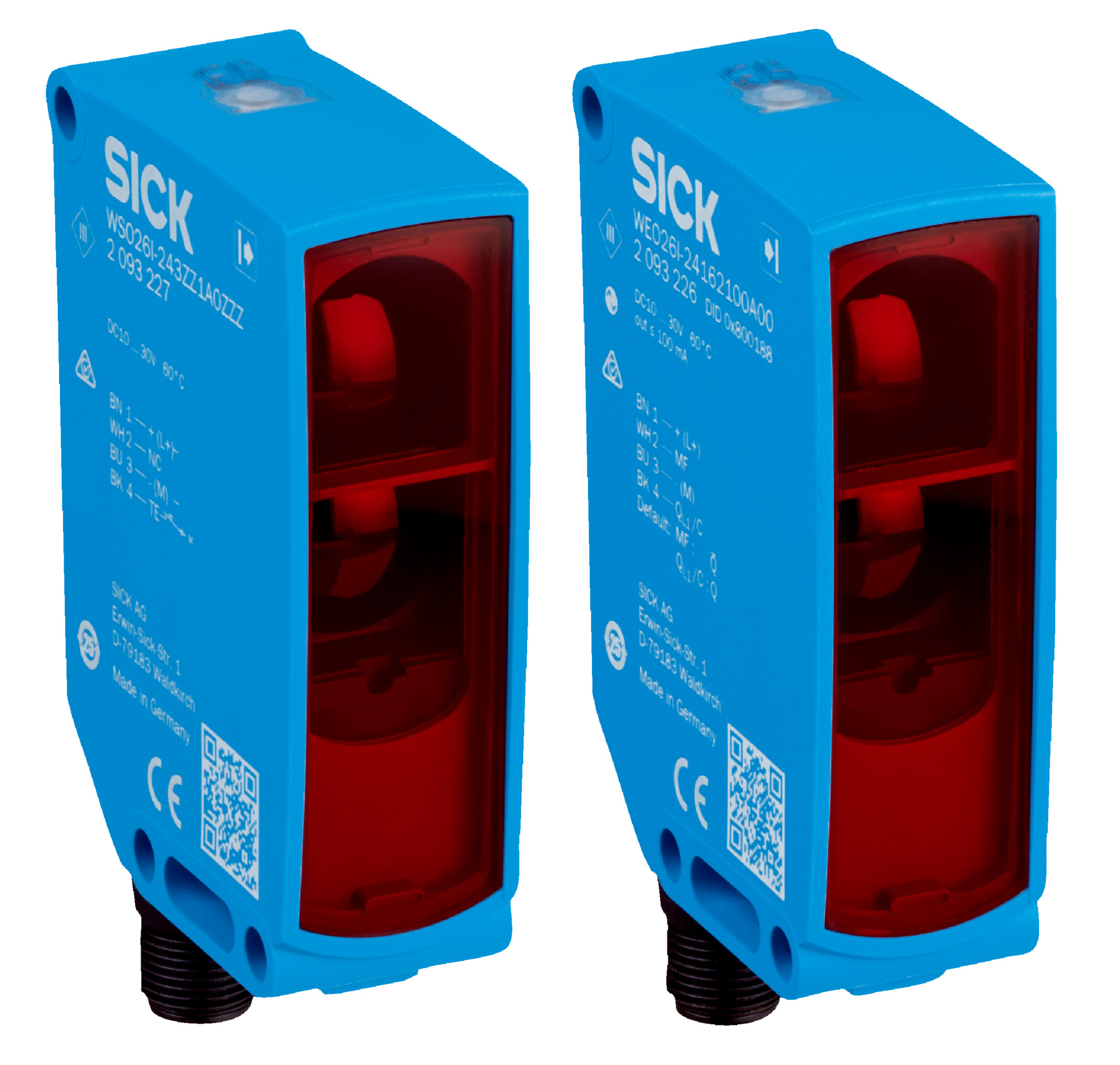

Through-Beam Photoelectric Sensor WSE16P-39112100ZZZ | 60m Sensing Range | PinPoint LED Light Source | IP66/IP67/IP69 Rated | by SICK
The WSE16P-39112100ZZZ Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 60 meters and a PinPoint LED light source with a 635 nm wavelength. With a fast response time of ≤ 500 µs and robust IP66/IP67/IP69 protection, it's perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 0 m to 60 m, recommended 0 m to 50 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 115 mm at 15 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load, < 50 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®, front screen PMMA
- Communication: IO-Link V1.1 with 2.3 ms cycle time
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.16 kg
Key Features
- Through-beam photoelectric sensor with sensing range up to 60 m
- PinPoint LED light source with visible red light at 635 nm wavelength
- High precision with point-shaped light spot and minimal beam dispersion
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- LED indicators for alignment aid, operating status, and light beam status
- Wide ambient operating temperature range from -40 °C to +60 °C
- Certified with multiple international conformity declarations including cULus and ECOLAB
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption minimizes power usage
- Robust design reduces environmental impact by minimizing sensor failures and replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WSE16P-39112100ZZZ Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
