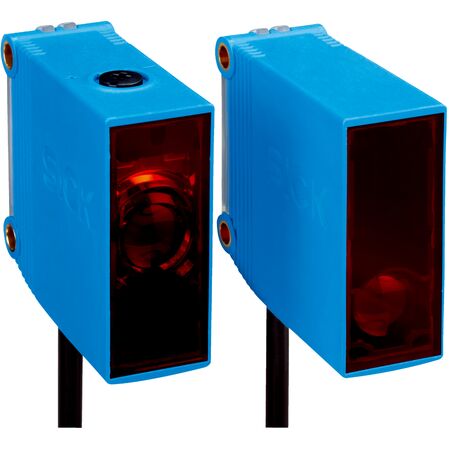

Through-beam Photoelectric Sensor GSE10-R9812 | IP67 Rated | 35m Sensing Range | PinPoint LED Light | by SICK
The Through-beam Photoelectric Sensor GSE10-R9812 is designed for industrial automation, featuring a sensing range of up to 35 meters and a visible red light with a PinPoint LED light source. With an IP67 rating, it withstands harsh environments, making it ideal for safety and monitoring in manufacturing processes. Its potentiometer adjustment allows for precise setup, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption sender: ≤ 2 VA
- Power consumption receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 5 m, PVC
- Conductor cross section: 0.25 mm²
- Circuit protection: C
- Protection class: II
- Interference emission: EN 61000-6-3 (2011-09)
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED light source
- Sensing range up to 35 meters
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- High protection rating IP67 for harsh environments
- Operating temperature range from -30°C to +60°C
- Mounting bracket included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤2 VA sender and ≤2.5 VA receiver
- Durable housing reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GSE10-R9812 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
