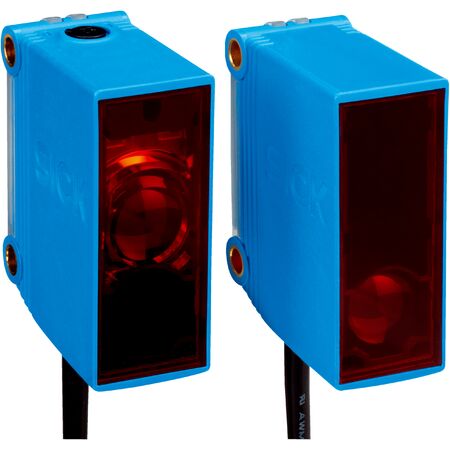

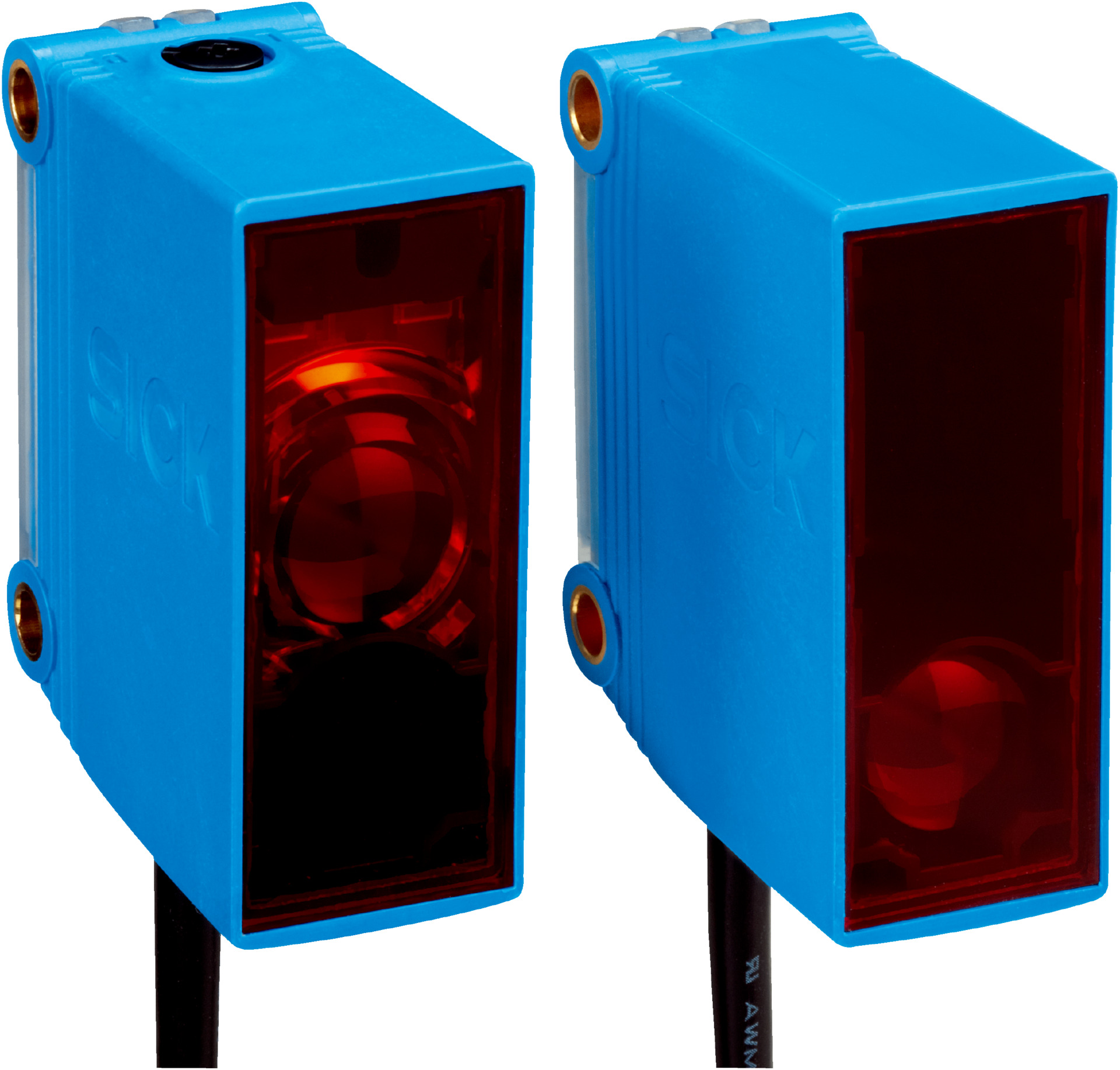

Through-beam Photoelectric Sensor GSE10-N1112 | 35m Sensing Range | IP67 Rated | by SICK
The GSE10-N1112 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 35 meters and a visible red light source. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m, typical 0 m to 35 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length, PVC insulation
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Additional standards: UL325
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with PinPoint LED light source
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with sender ≤ 15 mA and receiver ≤ 20 mA
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE10-N1112 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
