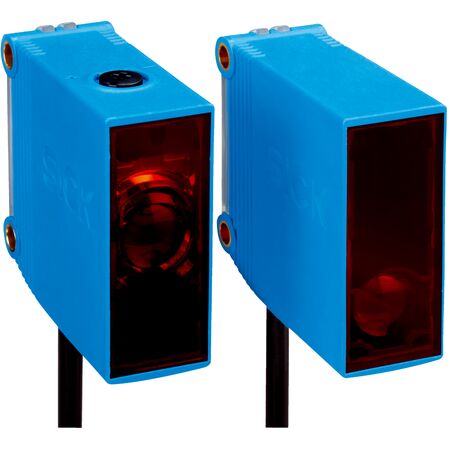

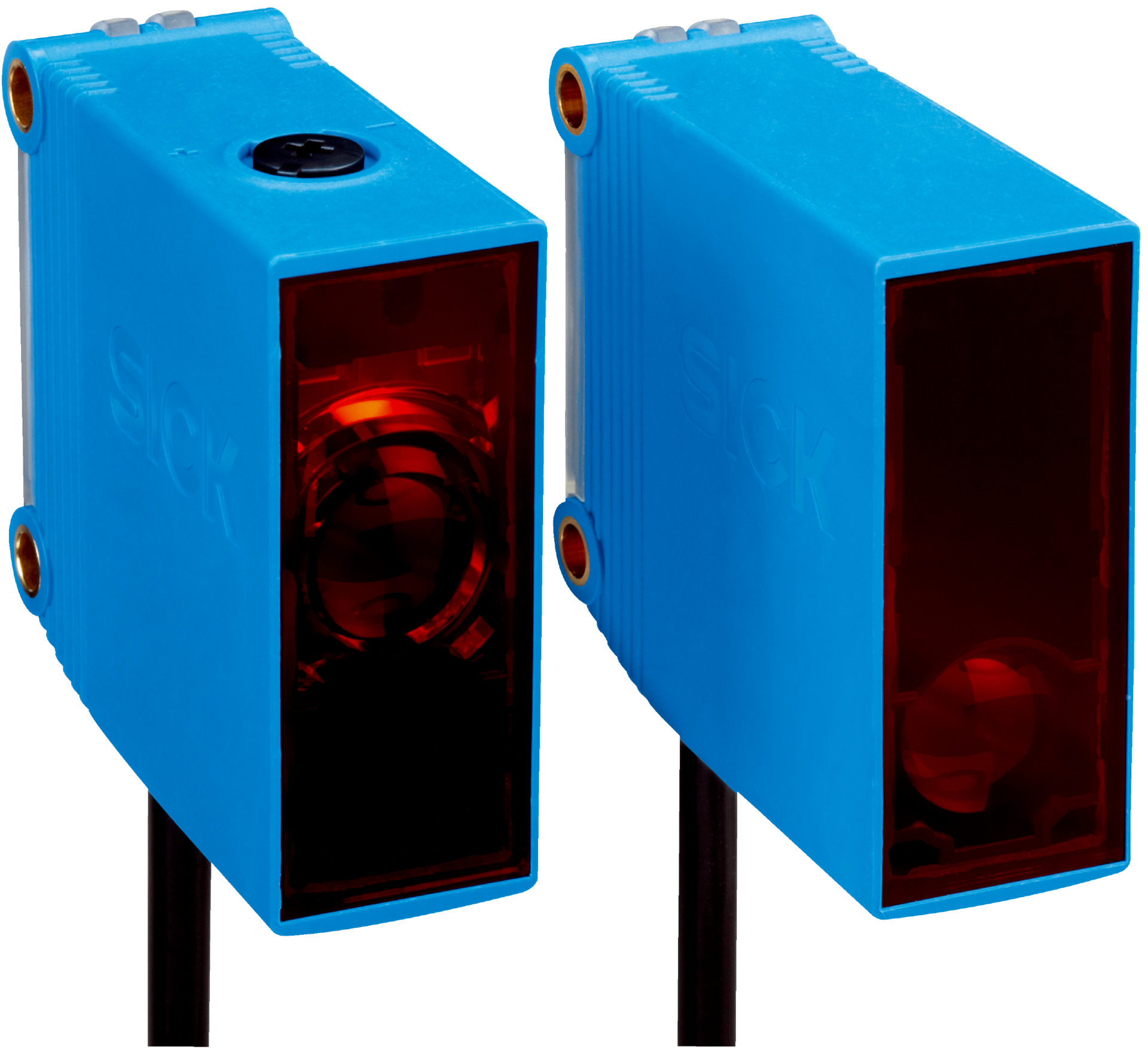

Through-beam Photoelectric Sensor GSE10-R3811 | IP67 Rated | 40m Sensing Range | Relay SPDT Output | by SICK
The GSE10-R3811 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a robust IP67 enclosure. With a fast response time of ≤ 10 ms and a versatile supply voltage range from 24 V to 240 V AC/DC, this sensor is perfect for safety monitoring and object detection in manufacturing processes. Its durable design ensures reliability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size at 15 m: Ø 180 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption sender: ≤ 2 VA
- Power consumption receiver: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.23 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED light source
- Sensing range up to 35 meters
- Rectangular housing design with IP67 enclosure rating
- Relay SPDT electrically isolated switching output
- Light/dark switching mode with response time ≤ 10 ms
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Robust plastic ABS/PMMA housing material
- Operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 2.5 VA power usage
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-R3811 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
