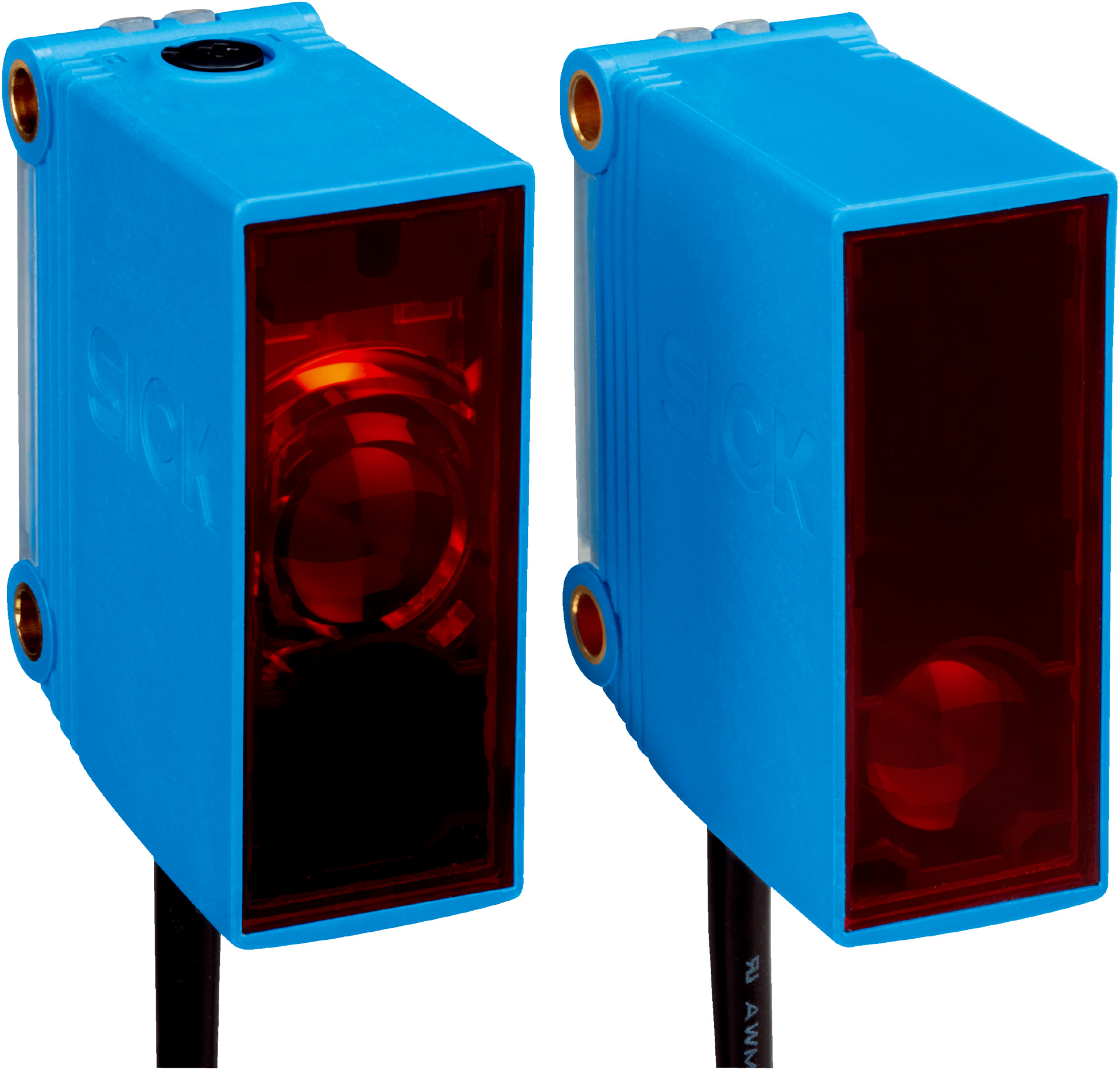

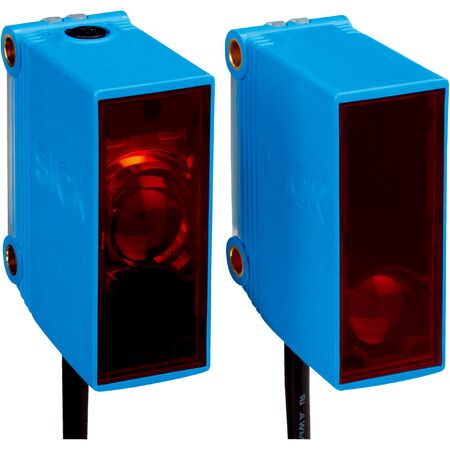

Through-beam Photoelectric Sensor GSE10-N1111 | 40m Sensing Range | IP67 Rated | Selectable Light/Dark Switching | by SICK
The GSE10-N1111 Through-beam Photoelectric Sensor is designed for industrial automation, offering a sensing range of up to 40 meters with visible red light. Ideal for safety and monitoring in manufacturing processes, this sensor features a high switching frequency of 1,000 Hz and an IP67 rated enclosure for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light (625 nm wavelength)
- Light spot size at 15 m: Ø 180 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 993 years
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with PinPoint LED light source
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with sender ≤ 15 mA and receiver ≤ 20 mA
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE10-N1111 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
