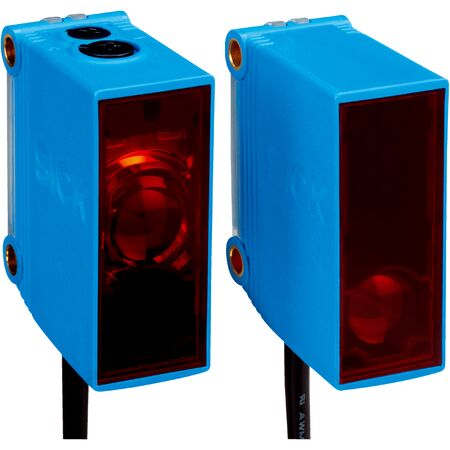

Through-beam Photoelectric Sensor GSE10-N1211 | IP67 Rated | 35m Sensing Range | Fast Response Time | by SICK
The GSE10-N1211 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a sensing range of up to 35 meters. With a fast response time of ≤ 500 µs and selectable light/dark switching mode, it's perfect for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: NPN
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Light wavelength: 625 nm
- Light spot size at 15 m: Ø 180 mm
- Adjustment: Potentiometer, 270°
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red light with PinPoint LED light source
- Sensing range up to 35 meters
- Rectangular housing design with IP67 enclosure rating
- Selectable light/dark switching mode
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Robust plastic ABS/PMMA housing material
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-N1211 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
