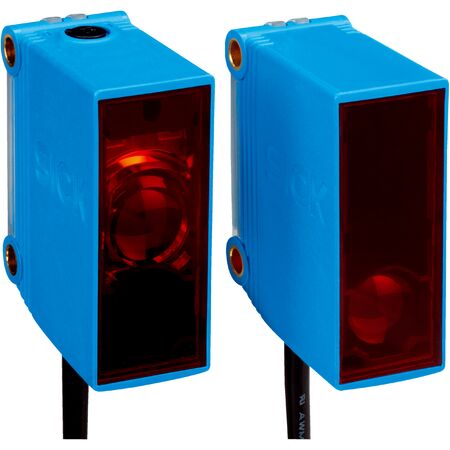

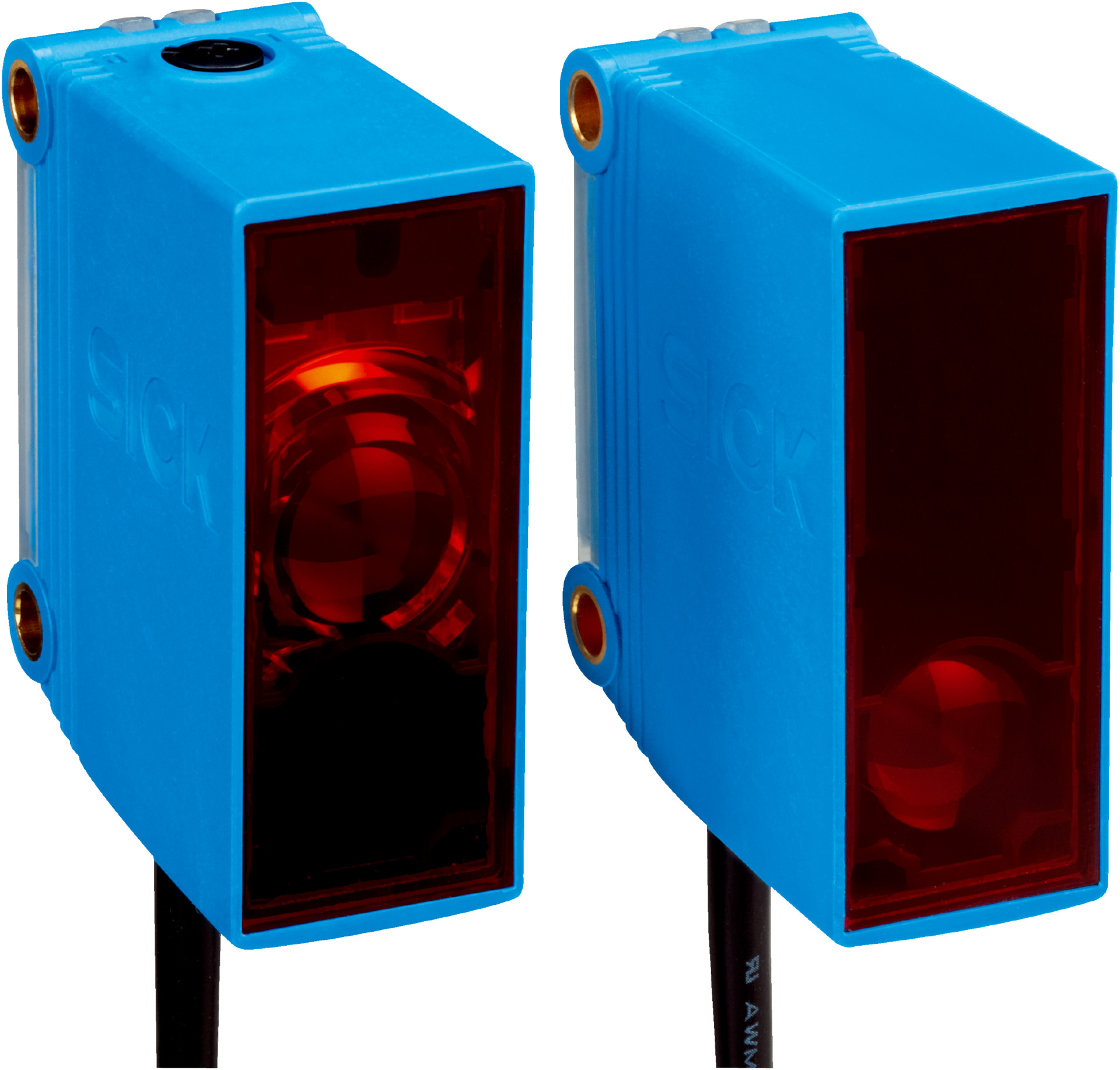

Through-Beam Photoelectric Sensor GSE10-P1112 | IP67 Rated | 35m Sensing Range | Selectable Light/Dark Switching | by SICK
The Through-Beam Photoelectric Sensor GSE10-P1112 is designed for industrial automation, featuring a sensing range of up to 35 meters and a visible red light source. With an IP67 rating for dust and water protection, this sensor is perfect for safety monitoring and object detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular housing design with visible red light
- Sensing range up to 35 meters
- PinPoint LED light source with 625 nm wavelength
- Selectable light/dark switching mode
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤15 mA sender and ≤20 mA receiver
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GSE10-P1112 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
