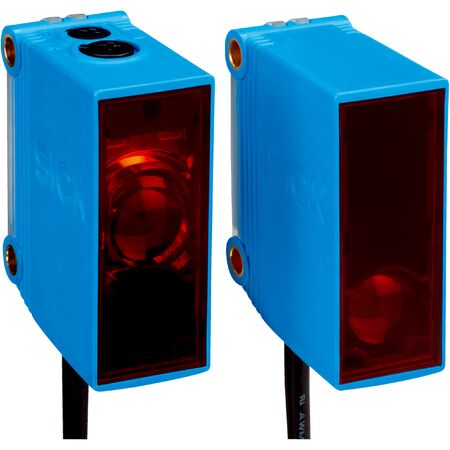

Through-beam Photoelectric Sensor GSE10-P1212 | 40m Sensing Range | IP67 Enclosure | by SICK
The GSE10-P1212 Through-beam Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 40 meters and a robust IP67 enclosure. With a visible red light and fast response time of ≤ 500 µs, it's perfect for object detection and safety monitoring in manufacturing processes. Built for durability and low power consumption, this sensor is ideal for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 40 m
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 15 m: Ø 180 mm
- Wave length: 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Power consumption sender: ≤ 15 mA
- Power consumption receiver: ≤ 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 35 meters
- Rectangular housing design with IP67 enclosure rating
- PinPoint LED light source with 625 nm wavelength
- Selectable light/dark switching mode
- Fast response time of ≤ 500 µs and switching frequency of 1,000 Hz
- Robust plastic ABS/PMMA housing material
- Includes mounting bracket BEF-G10DC01 (2x)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with ≤ 15 mA sender and ≤ 20 mA receiver
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE10-P1212 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
